Removal And Installation

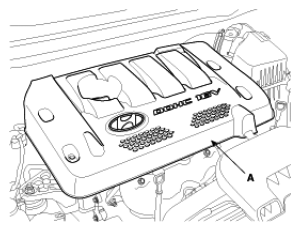

Removal the engine cover (A).

Fig 1: Identifying Engine Cover
Courtesy of HYUNDAI MOTOR CO.
Disconnect the throttle position sensor (TPS) and the idle speed actuator (ISA) connectors.
Disconnect the positive crankcase ventilation (PCV) hose and the breather hose.
Disconnect the accelerator cable.
Remove the delivery pipe (A).

Fig 2: Identifying Delivery Pipe
Courtesy of HYUNDAI MOTOR CO.
Disconnect the purge control solenoid valve (PCSV) hose and the brake booster hose from the intake manifold and throttle body assembly.
Remove the intake manifold stay (A).
Tightening torque

17.7 ~ 24.5 Nm (1.8 ~ 2.5 kgf.m, 13.0 ~ 18.1 lb-ft)

Fig 3: Identifying Intake Manifold Stay
Courtesy of HYUNDAI MOTOR CO.
Remove the intake manifold assembly (A).
Tightening torque

15.7 ~ 22.6 Nm (1.6 ~ 2.3 kgf.m, 11.6 ~ 16.6 lb-ft)

Fig 4: Identifying Intake Manifold Assembly
Courtesy of HYUNDAI MOTOR CO.
To install, reverse the removal procedure with new gaskets.
