Supplemental Restraint System Control Module Harness Connector End Views (Depowered)

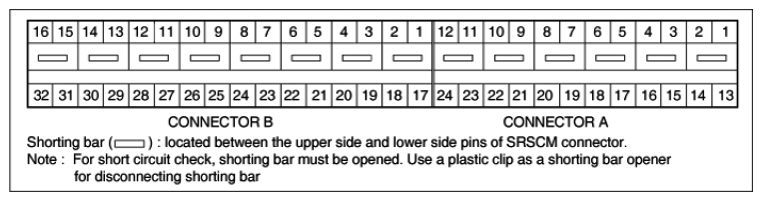

Fig 1: Supplemental Restraint System Control Module Harness Connector End Views (Depowered)
G06863819Courtesy of HYUNDAI MOTOR AMERICA
