Monitor Scantool Data

Variant Code
1. Check for improper installation of EMS/TCU/ESC.
2. Connect scantool to Data Link Connector (DLC).
3. Ignition "ON" & Engine "OFF".
4. Perform variant code. (Fig 1).
5. Disconnect scantool.
6. Ignition "OFF" and then ignition "ON". Go to "COMPONENT INSPECTION " Procedure.

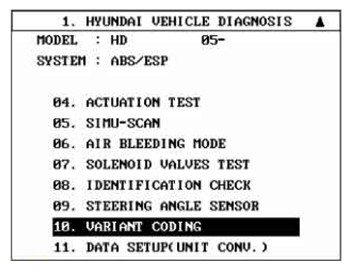

  Fig 1: Scantool Display - Variant Coding
  Courtesy of HYUNDAI MOTOR CO.
