Control Circuit Inspection

Check short in harness
1. IG "OFF".
2. Disconnect A/C relay and PCM connector.
3. Measure the resistance between terminal 3 of A/C relay harness connector and chassis ground.
  Specification: Infinite

  Fig 1: Measuring Resistance Between Terminal 3 Of A/C Relay Harness Connector And Chassis Ground
  Courtesy of HYUNDAI MOTOR CO.
4. Is the measured resistance within specification?
  YES
  - Go to " 2 Check open in harness" as follows.
  NO
  - Repair Short in Coil control harness and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
Check open in harness
1. IG "OFF".
2. Disconnect A/C relay and PCM connector.
3. Measure the resistance between terminal 3 of A/C relay harness connector and terminal 64 of PCM harness connector
  Specification: Approx. below 1Ω

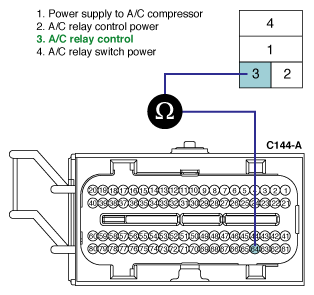

  Fig 2: Measuring Resistance Between Terminal 3 Of A/C Relay Harness Connector And Terminal 64 Of PCM Harness Connect
  Courtesy of HYUNDAI MOTOR CO.
4. Is the measured resistance within specification?
  YES
  - Go to "COMPONENT INSPECTION " procedure.
  NO
  - Repair Open in Coil control harness and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
