Monitor Scantool Data

  1. Connect scantool to data link connector(DLC)
  2. Ignition "ON" & Engine "OFF".
  3. Monitor the "TRANSAXLE RANGE SWITCH" parameter on the scantool
  4. Shift selector lever from "P" range to other range.

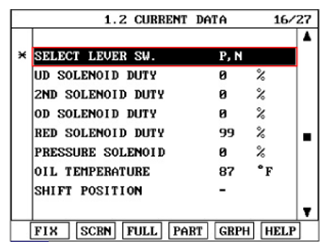

    Fig 1: Monitoring Selector Lever Switch - P Range
    G06806199Courtesy of HYUNDAI MOTOR CO.

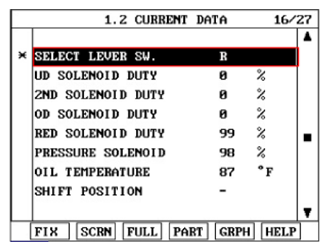

    Fig 2: Monitoring Selector Lever Switch - R Range
    G06806200Courtesy of HYUNDAI MOTOR CO.

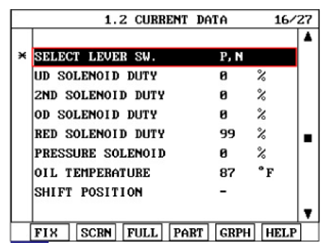

    Fig 3: Monitoring Selector Lever Switch - N Range
    G06806201Courtesy of HYUNDAI MOTOR CO.

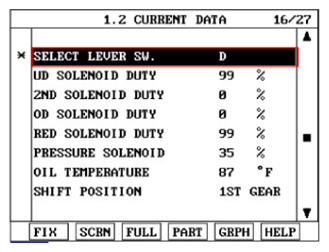

    Fig 4: Monitoring Selector Lever Switch - D Range
    G06806202Courtesy of HYUNDAI MOTOR CO.
  5. Does "TRANSAXLE RANGE SWITCH" follow the reference data?

    YES

    • Fault is intermittent caused by poor contact in the sensor's and/or TCM(PCM)'s connector or was repaired and TCM(PCM) memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration or damage. Repair or replace as necessary and go to "VERIFICATION VEHICLE REPAIR " procedure

    NO

    NOTE: * Most of fault that happen about inhibitor switch, result from faulty shift cable adjustment or incorrect location of manual control lever and inhibitor switch. So, when DTC which related Inhibitor switch or engine start defectiveness at "P" range happen, After check the shift cable adjustment or location of manual control lever and inhibitor switch, repair or replace as necessary.
