Home >> Hyundai >> 2010 >> Azera GLS >> Repair and Diagnosis >> Steering >> Steering Control Systems >> Body Control - Tilt/Telescope >> B1959 Tilt Position Sensor Error >> General Information >> Schematic Diagram

Schematic Diagram

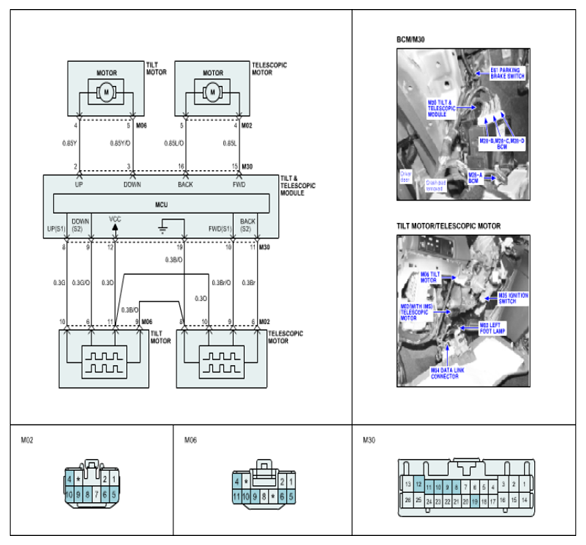

Fig 1: Tilt & Telescopic Module Schematic

G06805739

Courtesy of HYUNDAI MOTOR CO.
