Monitor DTC Status

Check DTC Status
1. Connect scantool to Data Link Connector (DLC).
2. IG "ON".
3. Select "Diagnostic Trouble Codes (DTCs)" mode, and then Press F4 (DTAL) to check DTC's information from the DTCs menu
4. Read "DTC Status" parameter.

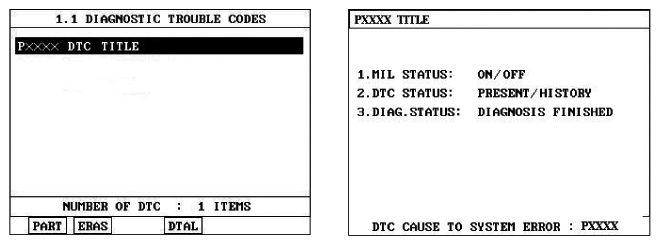

  Fig 1: Scan Tool Display - DTC Status Parameter
  Courtesy of HYUNDAI MOTOR CO.
5. Is parameter displayed "Present fault"?
  YES
  - Go to "COMPONENT INSPECTION " procedure.
  NO
  - Fault is intermittent caused by PCM memory was not cleared after repair. Erase DTC and drive the vehicle to satisfy the enable condition then, go to "COMPONENT INSPECTION " procedure.
