Monitor Scantool Data

  1. Connect scantool to Data Link Connector ( DLC).
  2. Ignition "ON" & Engine "OFF".
  3. Press the brake pedal.
  4. Monitor the "BRAKE LAMP SWITCH" parameter on the scantool.

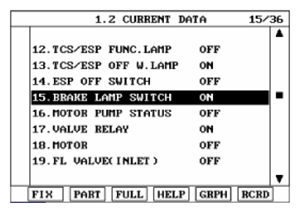

    Fig 1: Monitoring Brake Lamp Switch Parameter On Scantool
    G06805909Courtesy of HYUNDAI MOTOR CO.

    Normal data

  5. Whenever brake pedal is pushed down, is the brake switch's scantool data changed ON/OFF?

    YES

    • Fault is intermittent caused by poor connection in brake switch line or was repaired and HECU memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO
