Signal Circuit Inspection

■ Check for open in harness

1. Ignition "OFF"
2. Disconnect rear height motor.
3. Measure resistance between terminal "C8" of IMS and terminal "4" of rear height sensor.
4. Measure resistance between terminal "C9" of IMS and terminal "1" of rear height sensor.

   Specification  : Approx. 0 Ω

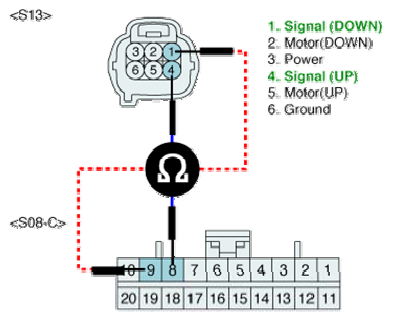

   Fig 1: Measuring Resistance Between Terminal C9 And Terminal 1 Of Rear Height Sensor

   Courtesy of HYUNDAI MOTOR CO.
5. Is the measured resistance within specifications?

   YES

   • Go to  1 Check for short in harness procedure.

   NO

   • Check for open in signal harness. Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

■ Check for short in harness

1. Ignition "OFF"
2. Disconnect rear height motor.
3. Measure resistance between terminal "1" and "4" of front rear sensor and chassis ground

   Specification  : Approx. ∞ Ω

   Fig 2: Measuring Resistance Between Terminal 1 And 4 Of Front Rear Sensor And Chassis Ground

   Courtesy of HYUNDAI MOTOR CO.
4. Is the measured resistance within specifications?

   YES

   • Go to "POWER CIRCUIT INSPECTION " procedure.

   NO

   • Check for short in signal harness. Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
