Home >> Hyundai >> 2010 >> Azera GLS >> Repair and Diagnosis >> Body & Frame >> Seats >> Body Control - Power Seat Module >> B1955 Recline Motor Or Sensor Error >> General Information >> Schematic Diagram

Schematic Diagram

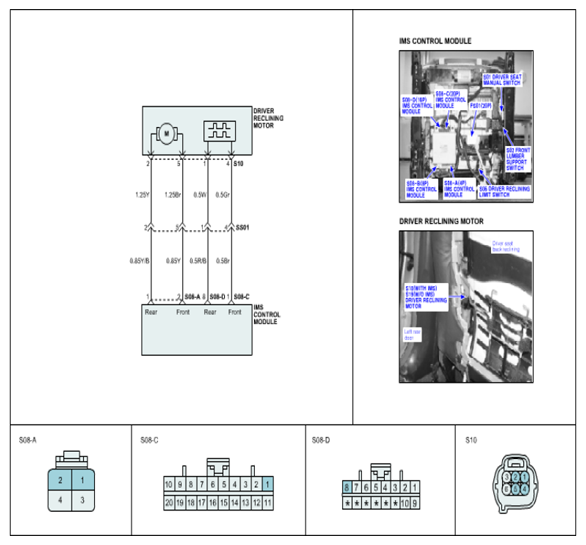

Fig 1: Schematic Diagram - Driver Reclining Motor

G06805683

Courtesy of HYUNDAI MOTOR CO.
