Home >> Hyundai >> 2010 >> Azera GLS >> Repair and Diagnosis >> Body & Frame >> Seats >> Body Control - Power Seat Module >> B1602 CAN BUS Physical Error >> General Information >> Schematic Diagram

Schematic Diagram

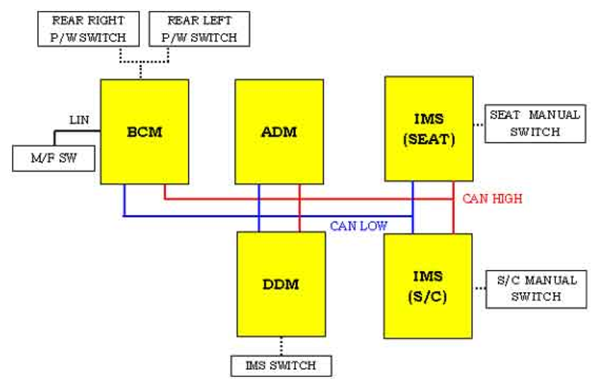

Fig 1: Communication Diagram - Power Seat Module
G06805654Courtesy of HYUNDAI MOTOR CO.

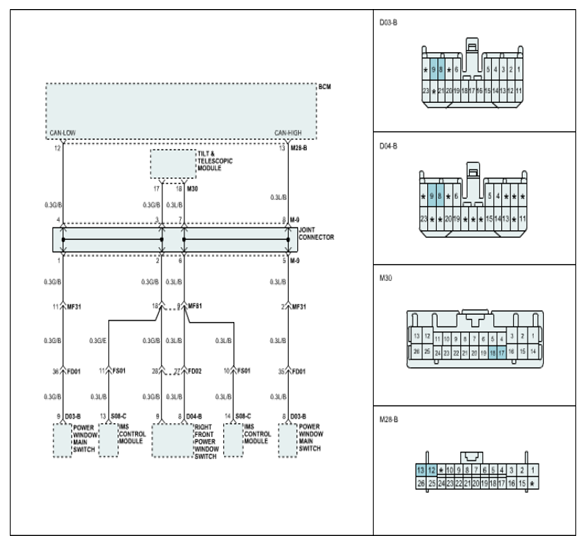

Fig 2: Schematic Diagram - Power Seat Module
G06805655Courtesy of HYUNDAI MOTOR CO.
Fig 3: Identifying Power Window Main Switch Connectors
G06805656Courtesy of HYUNDAI MOTOR CO.
