Component Location

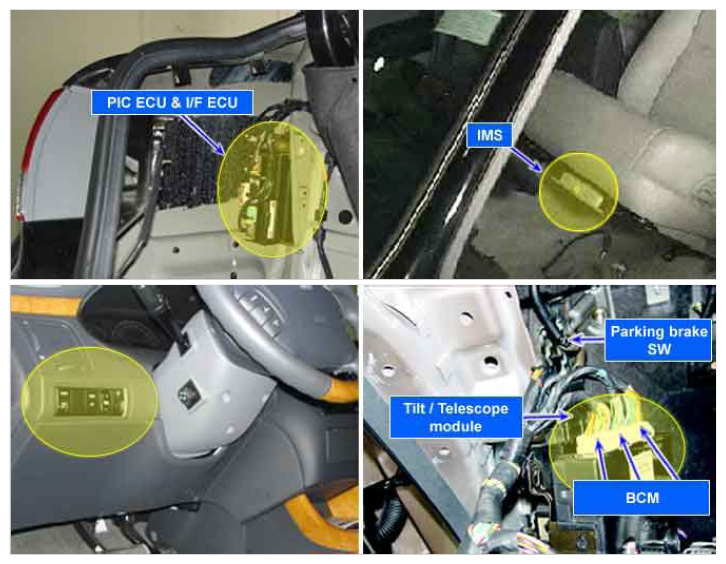

Fig 1: Identifying PIC ECU ,I/F ECU, BCM, Parking Brake SW And Tilt/Telescope Module

G06803235

Courtesy of HYUNDAI MOTOR CO.
