Home >> Hyundai >> 2010 >> Azera GLS >> Repair and Diagnosis >> Accessories & Equipment >> Wiper/Washer Systems >> Body Control - Body Control Module >> DTC B1906: Rain Sensor Fault 2 >> General Information >> Schematic Diagram

Schematic Diagram

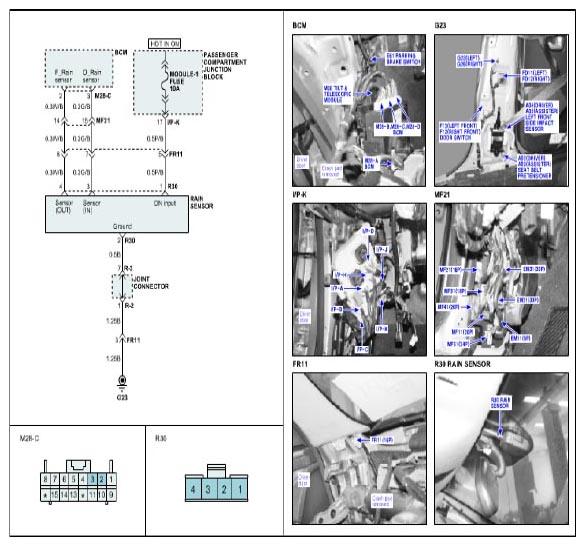

Fig 1: Schematic Diagram - Rainsensor

G06803349

Courtesy of HYUNDAI MOTOR CO.
