Schematic Diagram

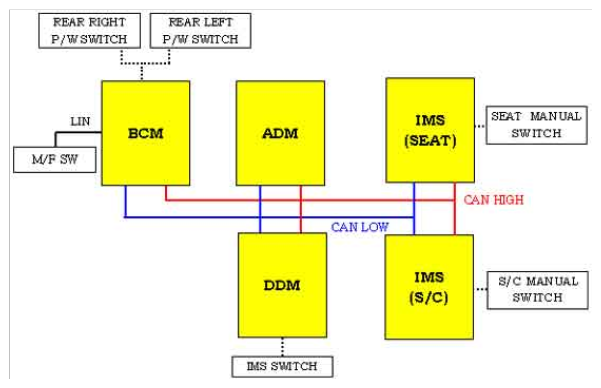

Fig 1: Communication Diagram - Body Control Module
G06803288Courtesy of HYUNDAI MOTOR CO.

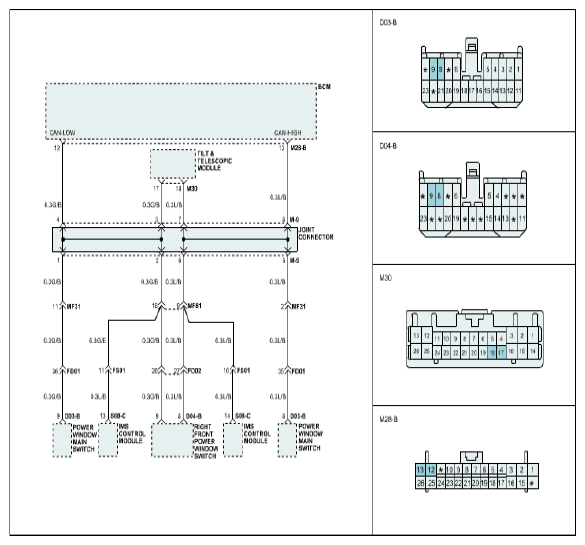

Fig 2: Schematic Diagram - Body Control Module
G06803289Courtesy of HYUNDAI MOTOR CO.

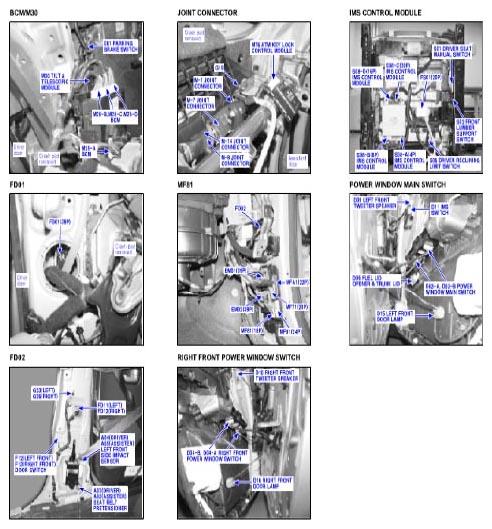

Fig 3: Identifying Power Window Main Switch Connectors
G06803290Courtesy of HYUNDAI MOTOR CO.
