Schematic Diagram

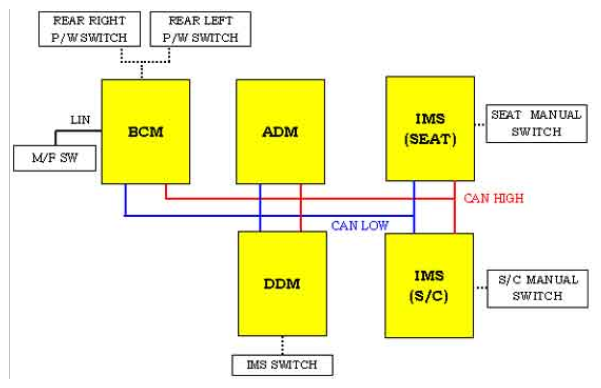

Fig 1: Communication Diagram - Body Control Module
G06803280Courtesy of HYUNDAI MOTOR CO.

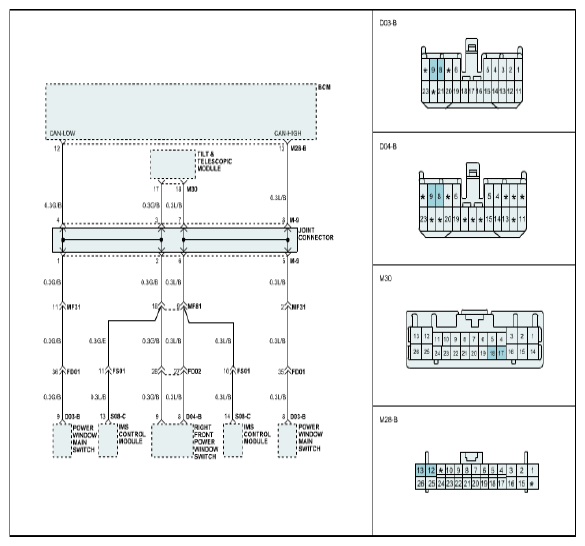

Fig 2: Schematic Diagram - Body Control Module
G06803281Courtesy of HYUNDAI MOTOR CO.

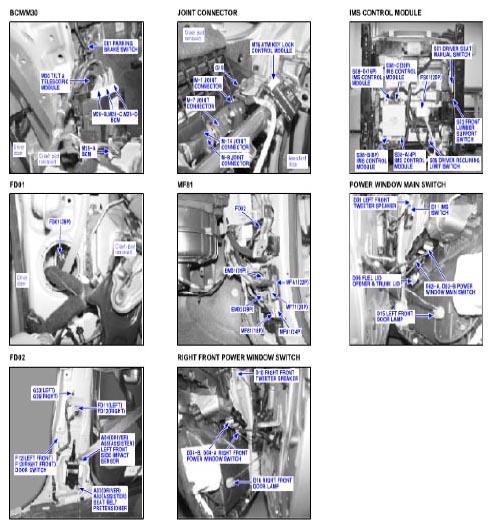

Fig 3: Identifying POWER WINDOW MAIN SWITCH Connectors
G06803282Courtesy of HYUNDAI MOTOR CO.
