Monitor Scan Tool Data

  1. Connect scan tool to data link connector (DLC).
  2. Engine "ON".
  3. Select "D RANGE" and drive vehicle.
  4. Monitor the "TORQUE CONVERTER (DAMPER) CLUTCH" parameter on the scan tool.

    Specification : TCC SLIP < 160RPM (In condition that TCC SOL. DUTY > 80%)

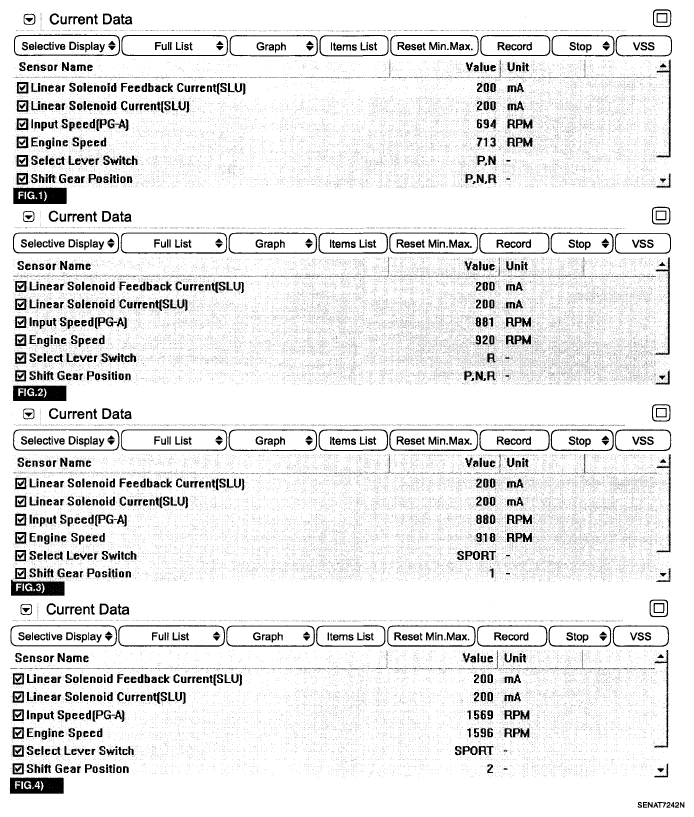

    Fig 1: Scan Tool Display - "TORQUE CONVERTER (DAMPER) CLUTCH" (1 Of 2)
    G05330239Courtesy of HYUNDAI MOTOR CO.

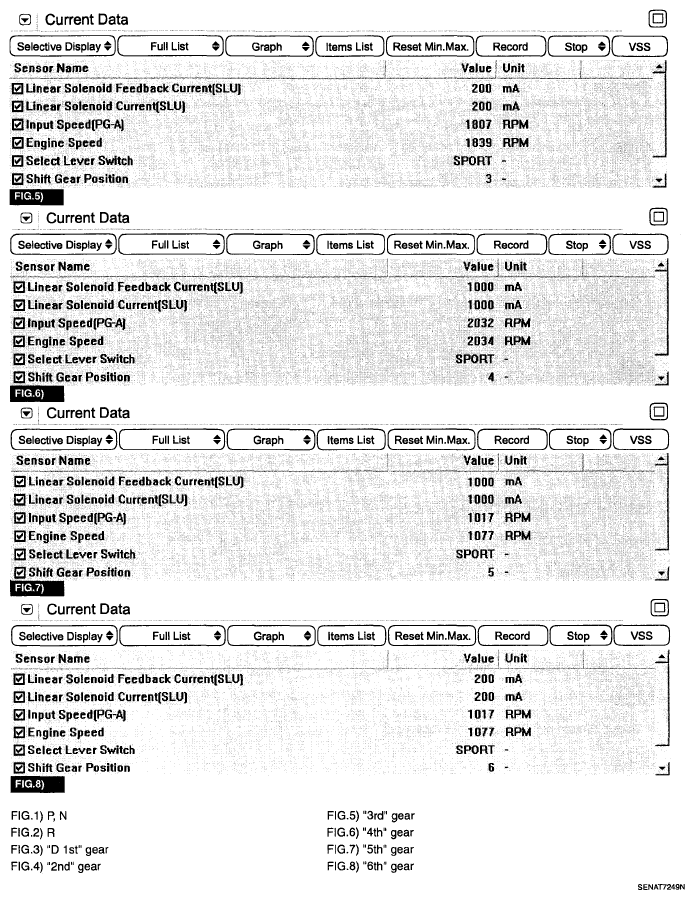

    Fig 2: Scan Tool Display - "TORQUE CONVERTER (DAMPER) CLUTCH" (2 Of 2)
    G05330240Courtesy of HYUNDAI MOTOR CO.
  5. Does "TCCSV" follow the reference data?

    YES:

    • Fault is intermittent caused by poor contact in the sensor's and/or TCM (PCM)'s connector or was repaired and TCM (PCM) memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
