Monitor Scan Tool Data

  1. Connect scan tool to data link connector (DLC).
  2. Engine "ON".
  3. Monitor the "LINE PRESSURE SOLENOID VALVE (SLT)" parameters on the scan tool.
  4. Shift gear at each position.

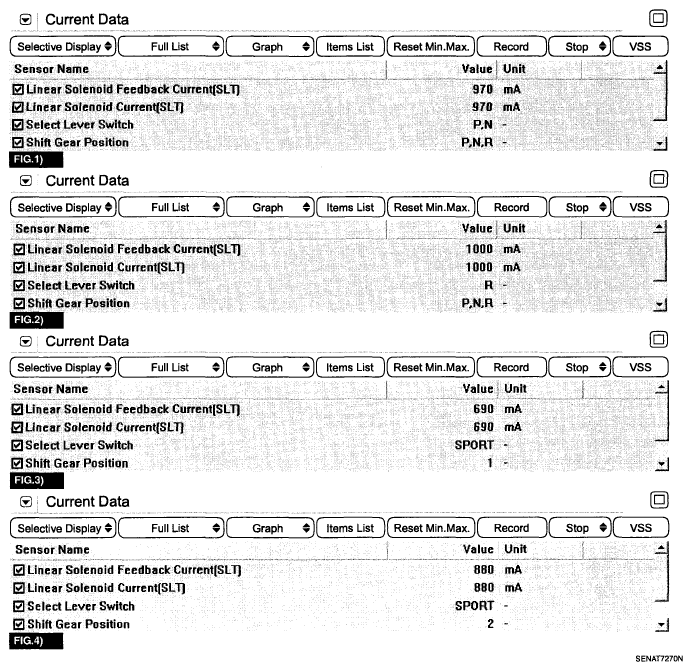

    Fig 1: Scan Tool Display - "LINE PRESSURE SOLENOID VALVE (SLT)" (1 Of 2)
    G05330256Courtesy of HYUNDAI MOTOR CO.

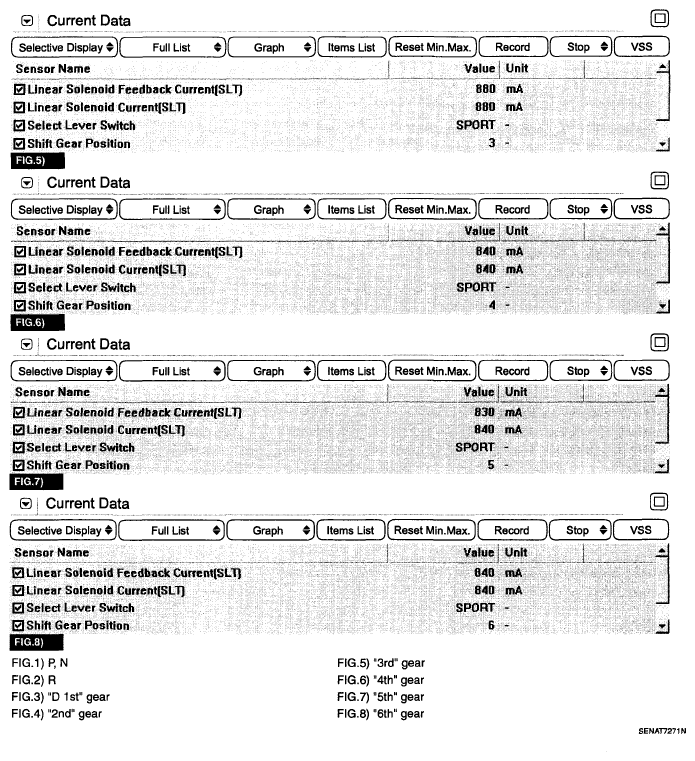

    Fig 2: Scan Tool Display - "LINE PRESSURE SOLENOID VALVE (SLT)" (2 Of 2)
    G05330257Courtesy of HYUNDAI MOTOR CO.
  5. Does the "LINE PRESSURE SOLENOID VALVE (SLT)" follow the reference data?

    YES:

    • Fault is intermittent caused by poor contact in the sensor's and/or TCM (PCM)'s connector or was repaired and TCM (PCM) memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO:
