Engine Control System (Fuel System) (G6DA - GSL 3.8)
>>
Gasoline Engine Control System
>>
Heated Oxygen Sensor (Ho2S)
>>
Inspection
>>
Schematic Diagram
Schematic Diagram

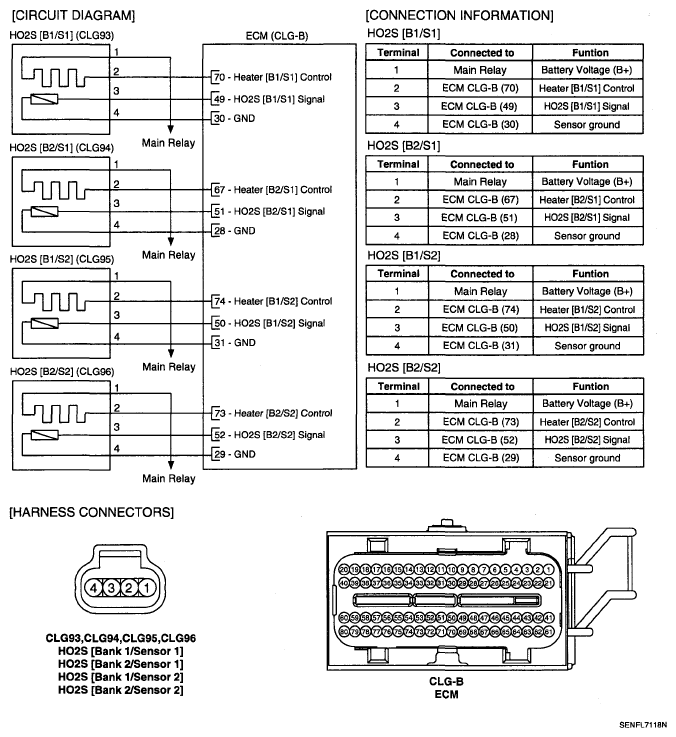

Fig 1: Heated Oxygen Sensor (HO2S) - Schematic Diagram
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
