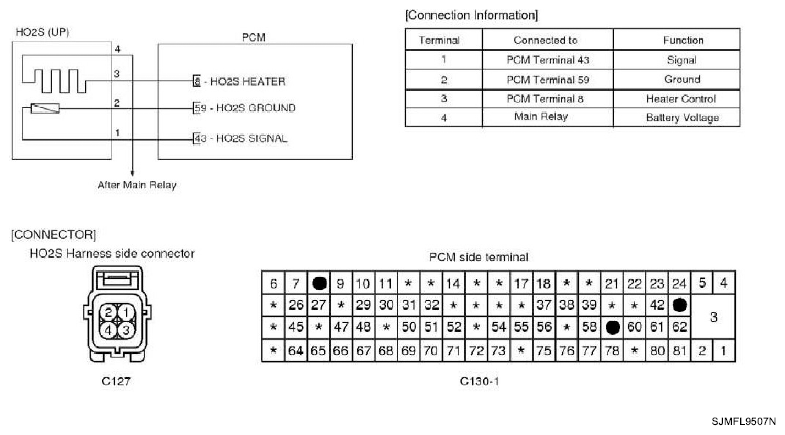

Home >> Hyundai >> 2009 >> Tucson GLS, Standard >> Repair and Diagnosis >> Engine Performance >> System >> DTC Troubleshooting Procedures (2.0L) >> Troubleshooting for DTC >> P0030 O2 Sensor Heater - Heater Control Circuit (Bank 1/Sensor 1) >> Schematic Diagram
