Hyundai
>>
2009
>>
Tucson GLS, Standard
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System (2.0L)
>>
Purge Control Solenoid Valve (PCSV)
>>
Circuit Diagram
Circuit Diagram

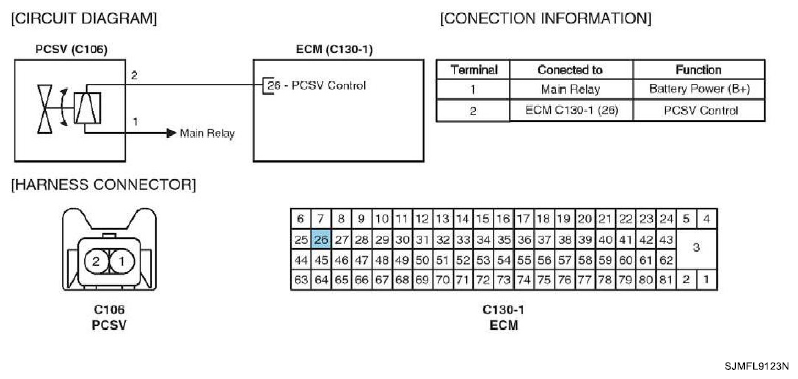

Fig 1: Purge Control Solenoid Valve Circuit Diagram
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
