Power Circuit Inspection

  1. Disconnect "TRANSAXLE RANGE SWITCH" connector.
  2. Ignition "ON" & Engine "OFF".
  3. Measure voltage between each terminal (C09) of the sensor harness connector and chassis ground.

    Specification  :

    TERMINAL SPECIFICATIONS

    Terminal (C15)  1 3 4 7 8 9 10
    Specification  0V 12V (PULL UP) 12V (PULL UP) 0V 7V 0V 0V

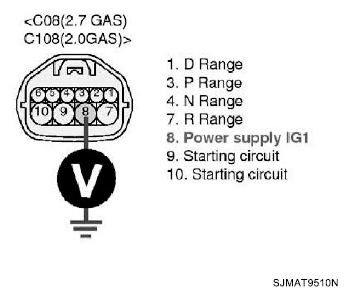

    Fig 1: Measuring Voltage Between Each Terminal (C09) Of Sensor Harness Connector And Chassis Ground
    G06207262Courtesy of HYUNDAI MOTOR CO.
  4. Is voltage within specifications?

    YES

    NO
