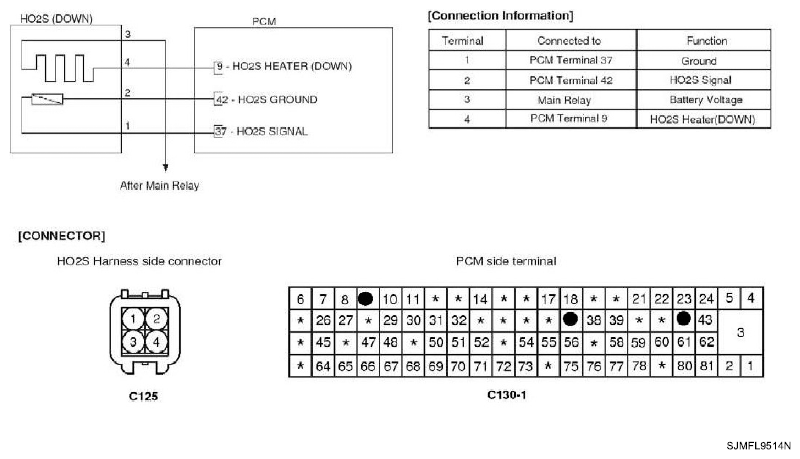

Home >> Hyundai >> 2009 >> Tucson GLS, Automatic >> Repair and Diagnosis >> Engine Performance >> System >> DTC Troubleshooting Procedures (2.0L) >> Troubleshooting for DTC >> P0136 O2 Sensor Circuit Malfunction (Bank 1/Sensor 2) >> Schematic Diagram
