Power Circuit Inspection

Ignition "ON" & Engine "OFF".
Disconnect the "A/T CONTROL RELAY" connector.
Measure the voltage between terminal "1" of the "A/T CONTROL RELAY" harness (JC101) connector and chassis ground.
Specification : Approx. B+

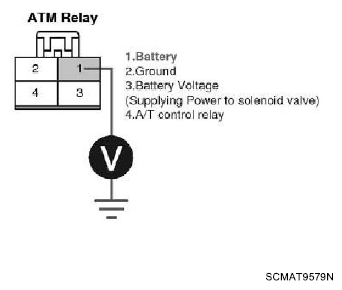

Fig 1: Measuring Voltage Between Terminal 1 Of A/T Control Relay Harness (JC101) Connector And Chassis Ground
Courtesy of HYUNDAI MOTOR CO.
Is voltage within specifications?
YES
- Go to "SIGNAL CIRCUIT INSPECTION " procedure.
NO
- Check that A/T-15A Fuse in engine room junction is installed or not blown.
- Check for Open in harness. Repair as necessary and Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
