Monitor Scan Tool Data

  1. Connect scan tool to data link connector (DLC)
  2. Engine "ON".
  3. Monitor the "OUTPUT SPEED SENSOR" parameter on the scan tool.
  4. Driving at speed of over 19 Mile/h (30 Km/h).

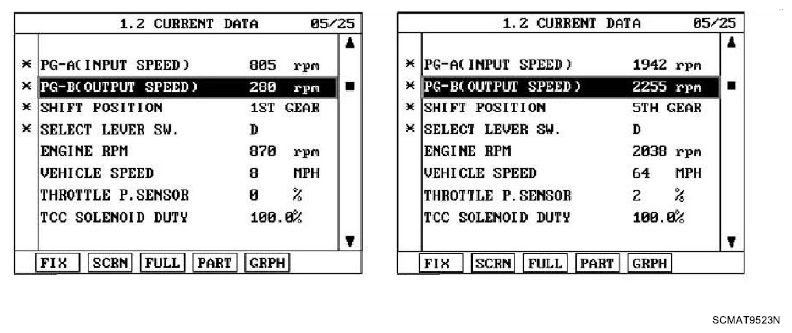

    Fig 1: Monitor Scan Tool Display - Shift Position (1ST And 5TH Gear)
    G06219942Courtesy of HYUNDAI MOTOR CO.
  5. Does "Output Speed Sensor" follow the reference data?

    YES

    • Fault is intermittent caused by poor contact in the sensor's and/or TCM (PCM)'s connector or was repaired and TCM (PCM) memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
