Power Circuit Inspection

  1. Disconnect "TRANSAXLE RANGE SWITCH" connector.
  2. Ignition "ON" & Engine "OFF".
  3. Measure voltage between each terminal of the sensor harness connector and chassis ground.

    Specification  :

    TERMINAL SPECIFICATION

    Terminal (C08) No 1 No 3 No 4 No 7 No 8 No 9 No 10
    Specification 0V 0V 0V 0V 12V 0V 0V

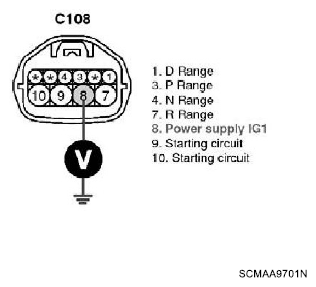

    Fig 1: Measuring Voltage Between Terminal Of Sensor Harness Connector And Chassis Ground
    G06219923Courtesy of HYUNDAI MOTOR CO.
  4. Is voltage within specifications?

    YES

    NO
