Check Power To Range Switch,

  1. Disconnect "TRANSAXLE RANGE SWITCH" connector.
  2. Ignition "ON" & Engine "OFF".
  3. Measure voltage between terminal "8" of the sensor harness connector and chassis ground.

    Specification  : +

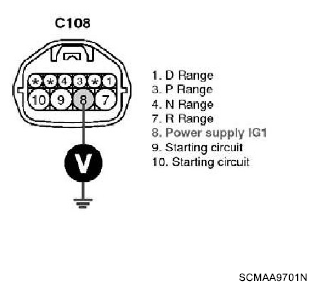

    Fig 1: Measuring Voltage Between Terminal 8 Of Sensor Harness Connector And Chassis Ground
    G06219920Courtesy of HYUNDAI MOTOR CO.
  4. Is voltage within specifications?

    YES

    NO

    • Check that Fuse OA is installed or not blown.
    • Check for open in harness. Repair as necessary and Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
