Hyundai
>>
2009
>>
Santa Fe SE, AWD
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System (Fuel System (3.3L))
>>
Canister Close Valve (CCV)
>>
Circuit Diagram
Circuit Diagram

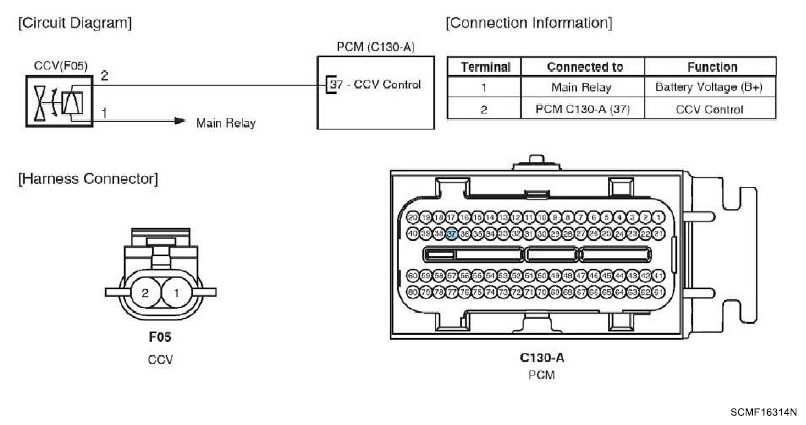

Fig 1: Canister Close Valve Circuit Diagram With Connector Terminals
Courtesy of HYUNDAI MOTOR CO.
