Circuit Diagram(1)

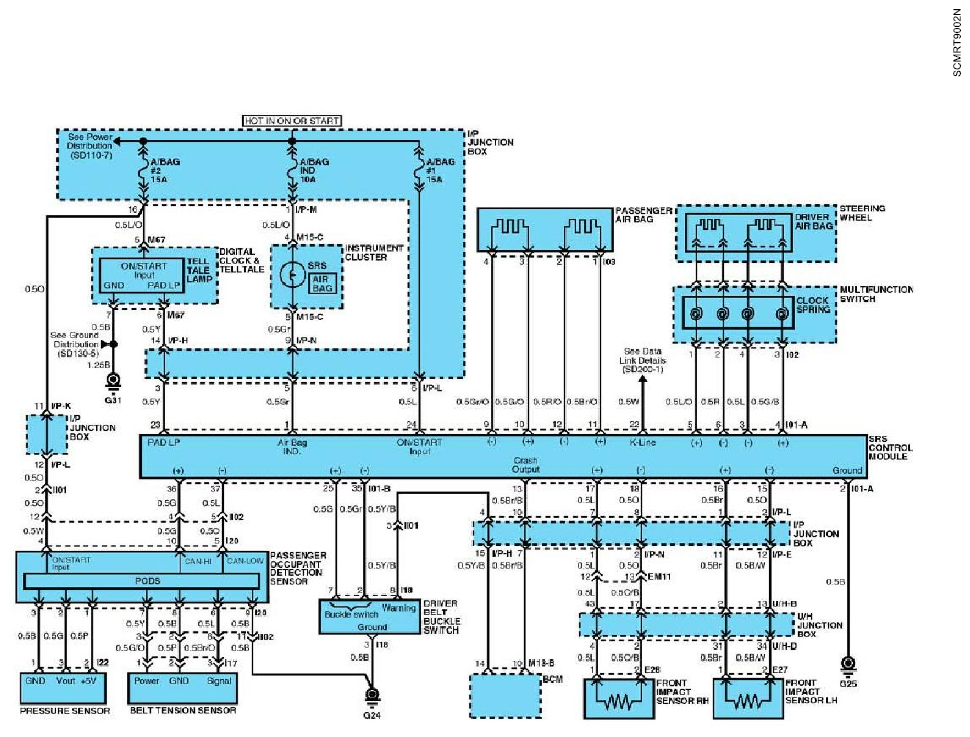

Fig 1: SRSCM Circuit Diagram (1 Of 2)

G06217529

Courtesy of HYUNDAI MOTOR CO.

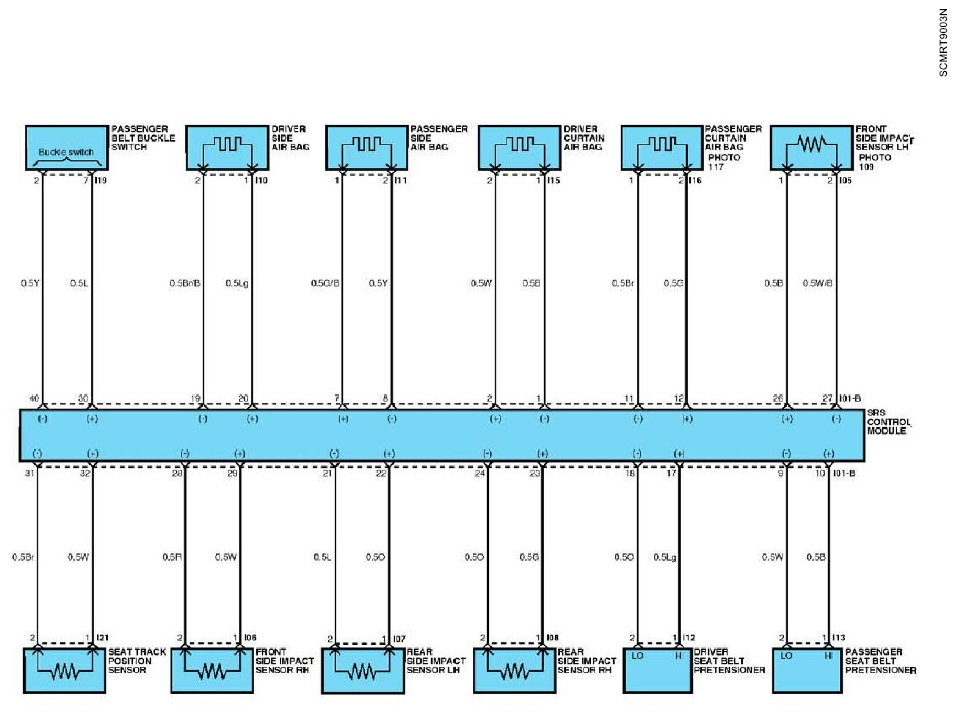

Fig 2: SRSCM Circuit Diagram (2 Of 2)

G06217530

Courtesy of HYUNDAI MOTOR CO.
