Evaporative And ORVR Emission Control System: Components

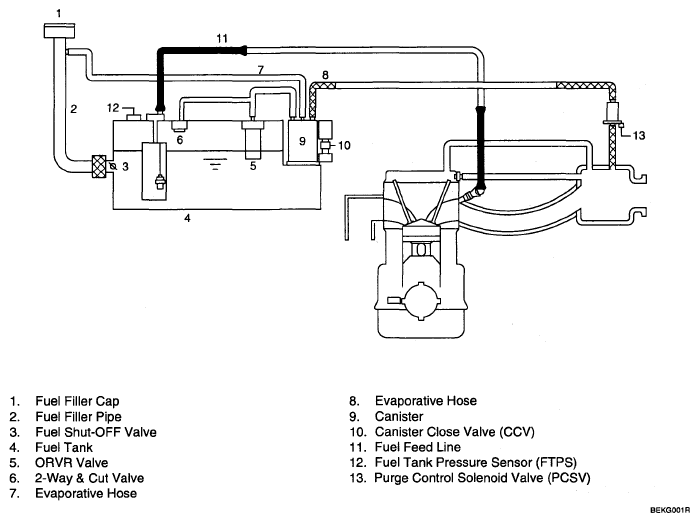

Fig 1: Evaporative And Emission Control System Diagram

G05329689

Courtesy of HYUNDAI MOTOR CO.
