ESP OFF Switch: Inspection

  1. Remove the ESC OFF switch from the switch panel on the crash pad of the driver's side.

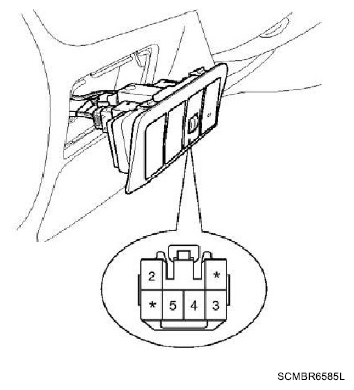

    Fig 1: Identifying ESP OFF Switch Connector Terminal
    G06220349Courtesy of HYUNDAI MOTOR CO.
  2. Check the continuity between the switch terminals as the ESC OFF switch is engaged. (Refer to circuit diagram )
