Monitor Scantool Data

Connect scantool to Data Link Connector (DLC).
Ignition "ON" & Engine "ON".
Monitor the "SAS CALIBRATED" parameters on the Scantool.

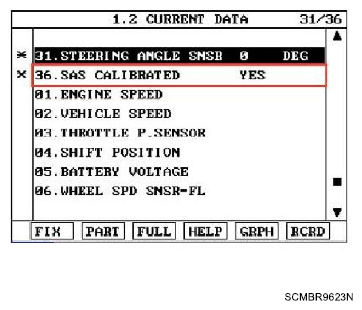

Fig 1: Scan Tool Display - Steering Angle Sensor (0 Deg)
Courtesy of HYUNDAI MOTOR CO.

Fig 1) SAS Calibrate normal data

-YES : SAS calibrated, NO : SAS not calibrated.
Is parameter displayed within specifications?
YES
- Fault is caused by having been repaired and HECU memory was not cleared. Clear the DTC and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Go to "COMPONENT INSPECTION " procedure.
