Monitor Scantool Data
- Engine "ON".
- Connect scantool to Data Link Connector (DLC).
- Start and drive vehicle in gear and maintain vehicle speed is approx. 12km/h or more (7mph or more)

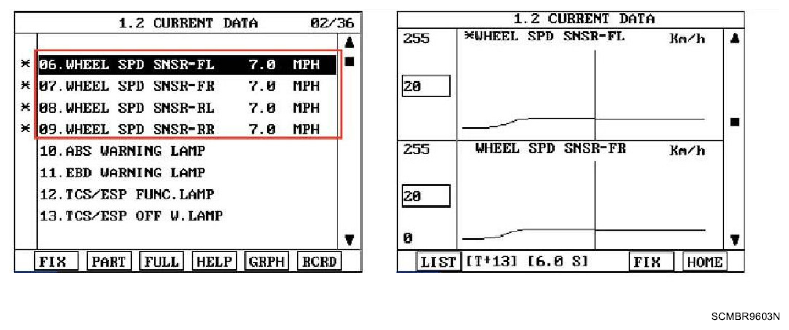

Normal Data
- Monitor the "WHEEL SPD SENSOR-FL" parameter on the Scantool.
Specification : Compare with another parameters related to wheel speed sensor.
If it is the same as another parameters, it is in normal condition.
Fig 2) Test Condition : Drive vehicle at a speed of 20km/h or more. (12mph or more)
Normal Graph
- Is parameter displayed within specifications?
YES
- Fault is intermittent caused by faulty HECU or external noise, was repaired and HECU memory was not cleared. Go to "COMPONENT INSPECTION " procedure.
NO
- Check for improper installation of wheel speed sensor. If NG, repair as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
- Check for damage of rotor teeth or wheel bearing. If NG, repair as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
- Substitute with a known-good Wheel speed sensor and check for proper operation. If problem is corrected, replace Wheel speed sensor and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
- If OK, Go to "COMPONENT INSPECTION " Procedure.
