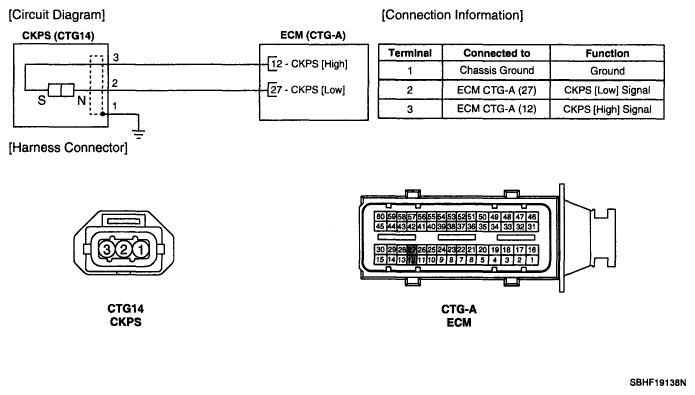

Home >> Hyundai >> 2009 >> Genesis 4.6 >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System (Fuel System (G8BA - GSL 4.6)) >> Crankshaft Position Sensor (CKPS) >> Circuit Diagram
