Circuit Diagram: Notes

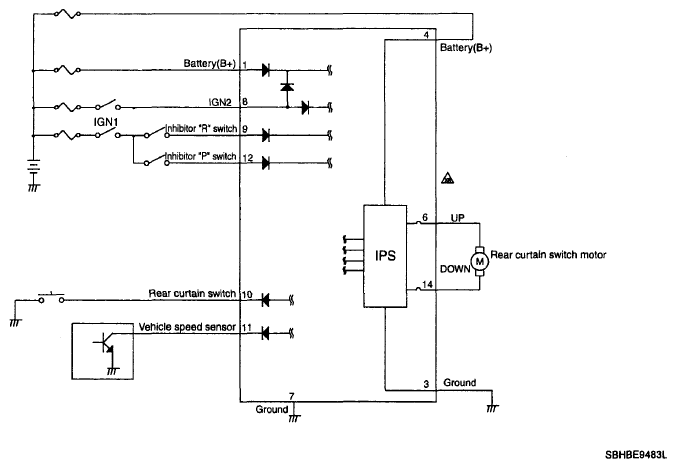

Fig 1: Identifying Rear Curtain System Circuit Diagram

G06104000

Courtesy of HYUNDAI MOTOR CO.
