Genesis 4.6
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Warning Systems
>>
Front Back View Camera System
>>
Circuit Diagram
Circuit Diagram

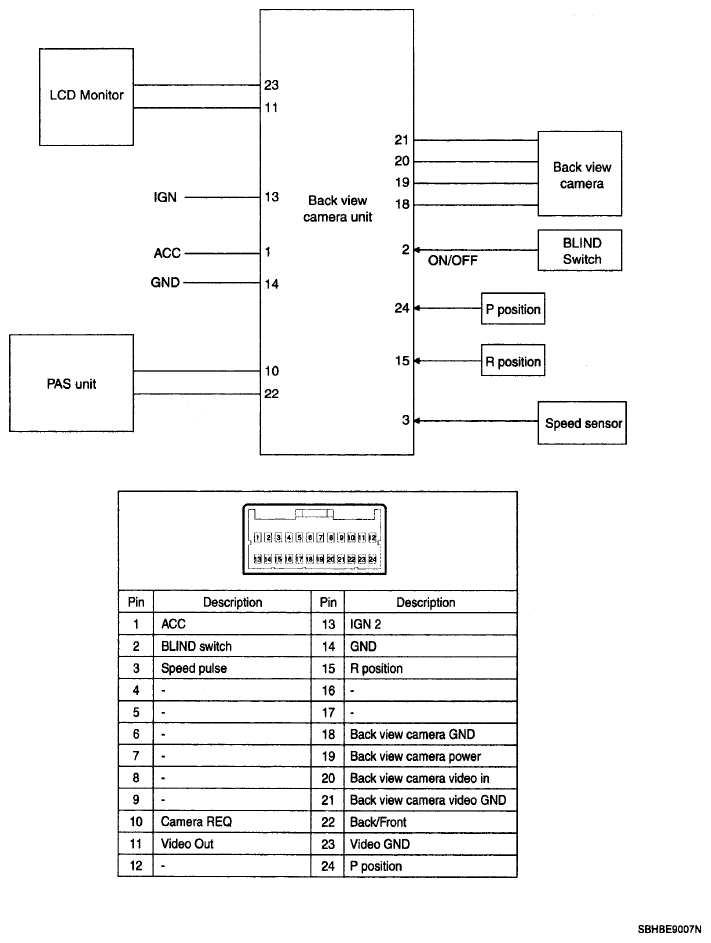

Fig 1: Front Back View Camera System Circuit Diagram
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
