Genesis 4.6
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Memory Modules
>>
IMS (Integrated Memory System)
>>
Circuit Diagram
Circuit Diagram

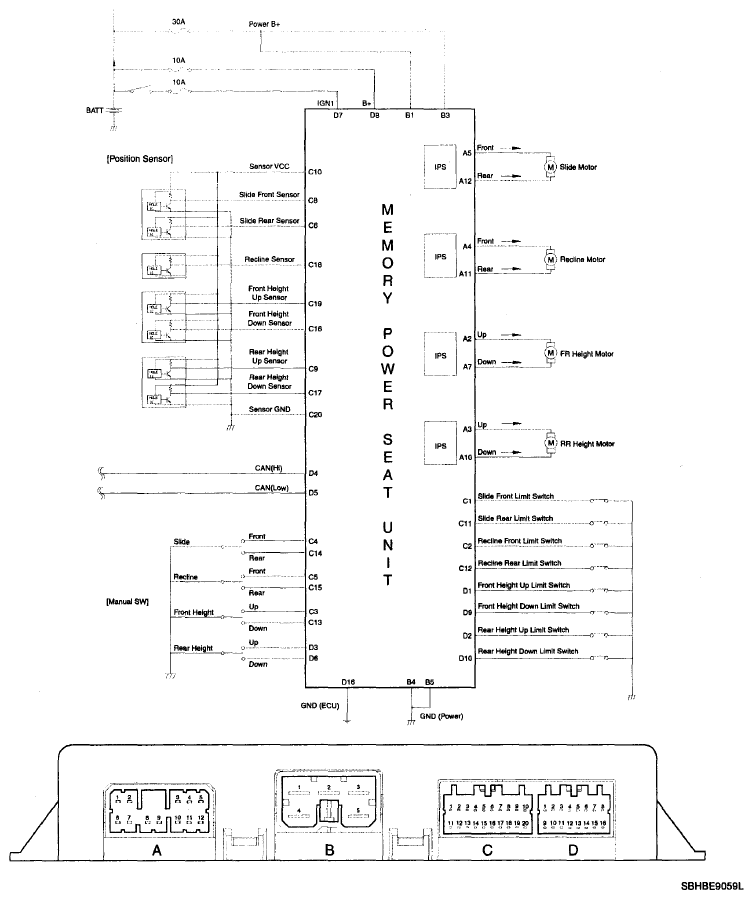

Fig 1: IMS (Integrated Memory System) - Circuit Diagram
Courtesy of HYUNDAI MOTOR CO.
