Service Data Analysis

  1. IG "OFF" and connect GDS.
  2. IG "ON" and select "Current Data" menu.
  3. Check the service data of ESCL BATT.

    Specification:  ON

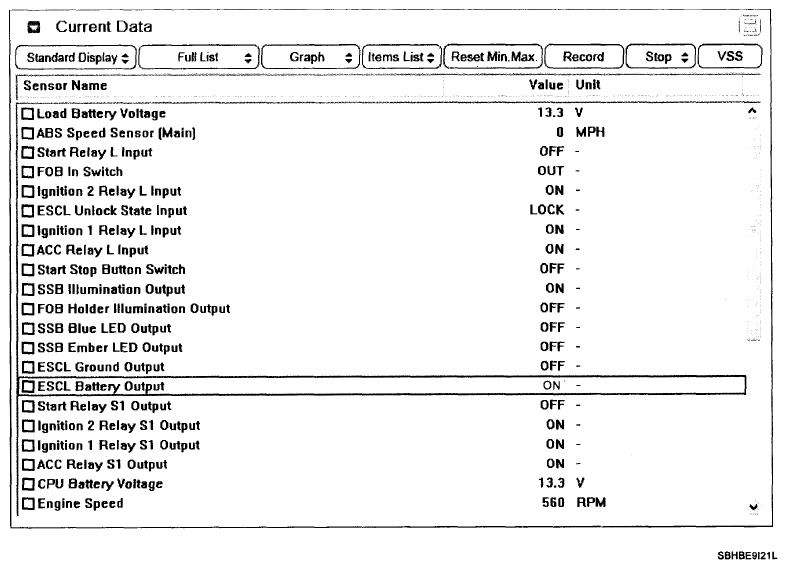

    Fig 1: Scan Tool Display - ESCL Battery Output
    G06102200Courtesy of HYUNDAI MOTOR CO.
  4. Is the service data within specifications?

    YES

    • Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO

    • Go to next procedure.
