Airbag Control Unit Update Service Campaign T79 (SC T79)

AIRBAG CONTROL UNIT UPDATE SERVICE CAMPAIGN T79

SERVICE CAMPAIGN BULLETIN

REVISION HISTORY

DESCRIPTION

This bulletin provides a procedure for using the GDS Diagnostic Tool to update the 2009 Genesis Airbag Control Unit (ACU).

IMPORTANT NOTES:

This TSB provides reprogramming instructions for GDS only. You may have to perform an initial internet update of GDS to receive the latest software version 1.5A.

If the vehicle has not been driven recently and was in storage, first start and run the engine for several minutes to ensure it has a reasonably charged battery before conducting the reprogramming. A low vehicle battery charge can prevent reprogramming.

VEHICLES AFFECTED

Model: 2009 Genesis (BH) vehicles.

Applicable vehicle production date range: From April 25, 2008 to November 18, 2008

ROM ID INFORMATION TABLE

ENGINE	ACU PART NUMBER	CALIBRATION VERSION
		CURRENT	NEW
3.8L	95910-3M300	18	23
4.6L	95910-3M500	22	24

GDS ECU SOFTWARE REPROGRAMMING PROCEDURE

Important Cautions for Reprogramming:

• Reprogramming by GDS can only be performed by using the USB cable between a laptop and the VCI; wireless cannot be used for reprogramming.
• Make sure the GDS laptop battery indicator at the bottom right of the screen indicates at least 25% battery charge remaining to be able to complete reprogramming; if not, charge the laptop or keep the AC adaptor connected while reprogramming.
• Perform reprogramming with the ignition key in the ON position.
• Turn off all lights (do not leave headlight switch in auto mode) and all accessories (including heater/air conditioner/blower, radio, heated seat, rear defroster, etc.) to make certain the battery will not be discharged during reprogramming.
• Be careful not to disconnect any cables connected to the vehicle during reprogramming.
• Do not start the engine during reprogramming.
• Do not turn the ignition switch OFF during reprogramming.

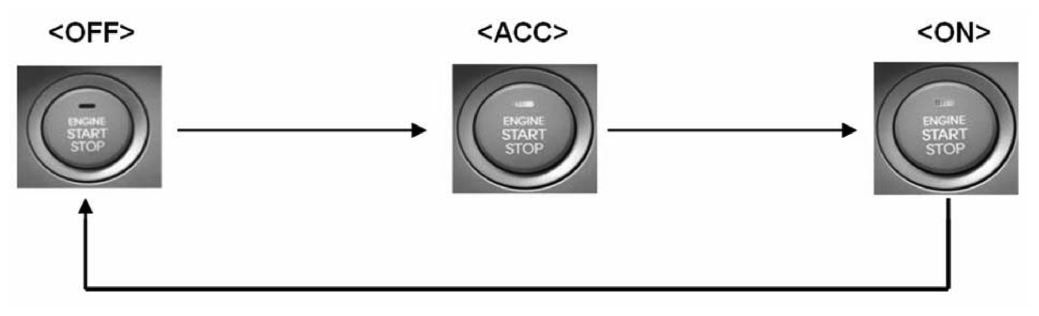

OPERATION OF THE ENGINE START/STOP IGNITION BUTTON

1. To get to the ACC position from the OFF position, press the Start/Stop button once when vehicle is in PARK, without depressing the brake pedal.
2. To get to the ON position from the OFF position, press the Start/Stop button two times when the vehicle is in PARK, without depressing the brake pedal.
3. To turn off the ignition power, press the Start/Stop button one time without depressing the brake pedal while vehicle is in PARK. If the button is depressed with the shift lever out of PARK, the ignition will not power off.
   NOTE: If the Start/Stop button is pressed while the brake pedal is depressed and the vehicle is in PARK, the engine will start.

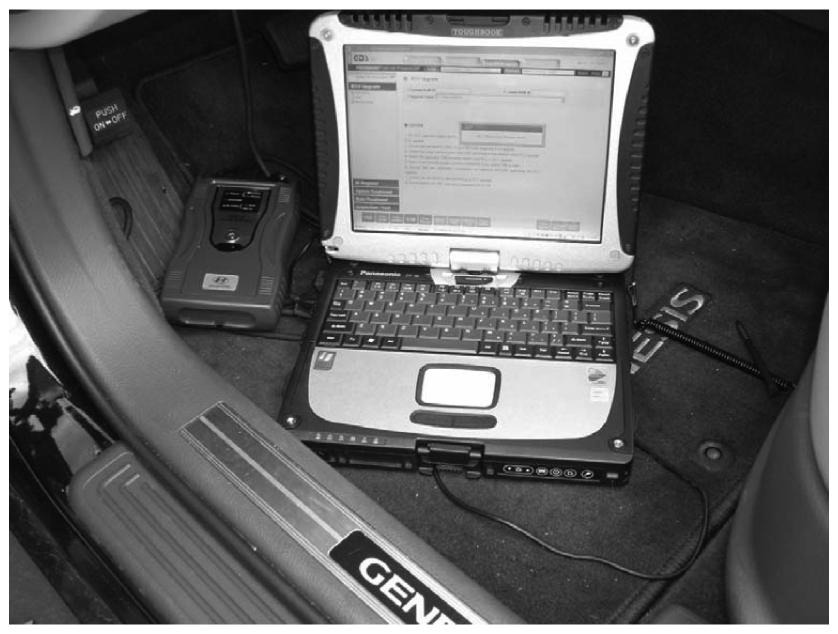

1. Connect the GDS VCI module to the vehicle's DLC connector and the USB cable between the VCI and GDS laptop's USB port.
2. Without depressing the brake pedal, push the Start/Stop button two times to turn on the vehicle ignition. Make sure the green power LED is lit on the VCI; if it is not press on the power button of the VCI. Within a few seconds, the GDS screen should indicate VCI:USB On  in bright blue to the left of the VIN button on the screen.
   NOTE: You must have an internet connection to GDS to be able to receive any updated data; the bright blue "InternetOn" should illuminate to the left of the VIN button.
   NOTE: If a GDS internet update is available, it could take up to several minutes to download and complete the update.
3. Make sure the GDS has the latest data by pressing the bottom right Internet Update  button on the GDS screen. You will get a confirmation on the GDS screen if it is already updated (see next page); otherwise the Download Start  button will be viewable and should be pressed to update the GDS.

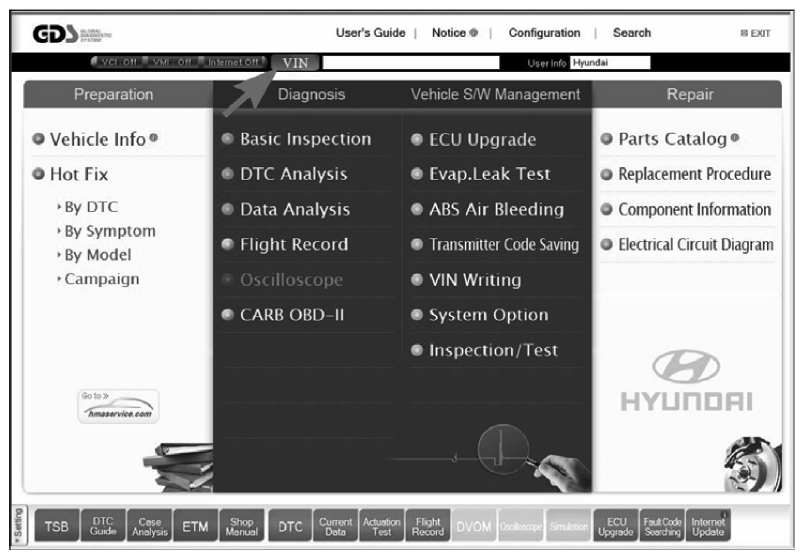

4. Press the VIN  button at the top of the screen to launch the GDS VIN search screen.

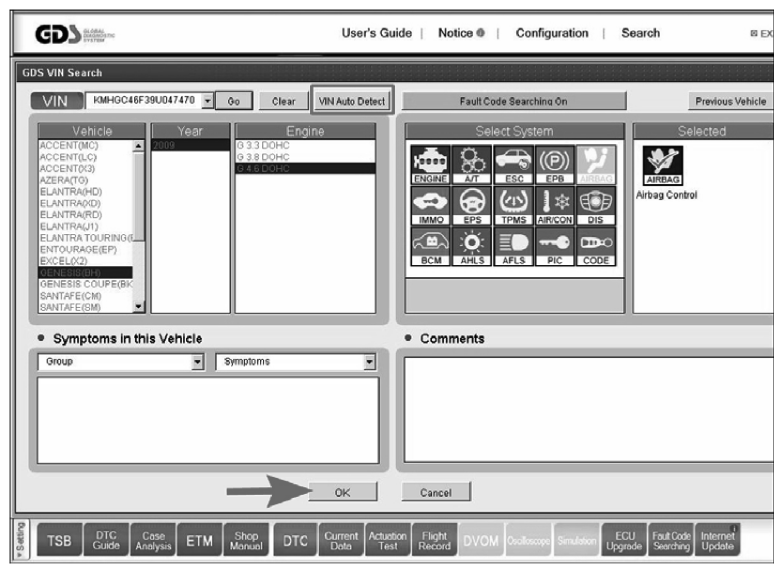

5. Press the VIN Auto Detect  button to automatically read the vehicle's VIN (or you will need to manually enter vehicle, year, and engine if it does not automatically read this information) then press Airbag Control Module  for system followed by the OK  button at the bottom of the screen.

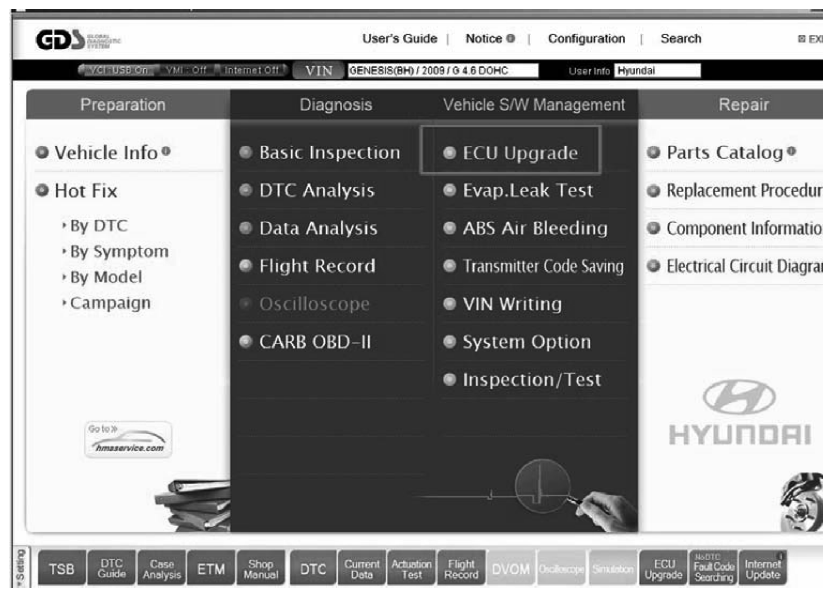

6. Press the ECU Upgrade  button on the following screen:

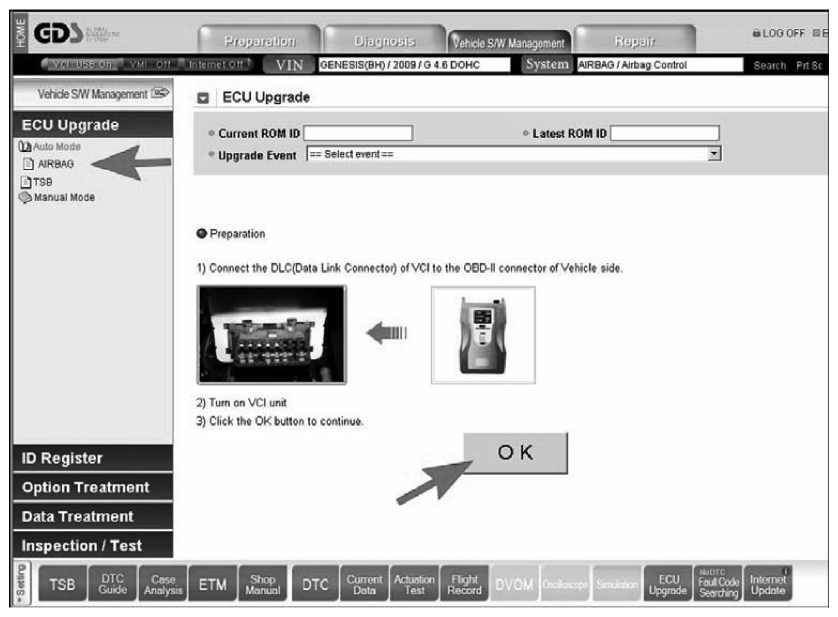

7. In the left column of the following ECU Upgrade screen select Auto Mode  followed by AIRBAG  , then the OK  button:

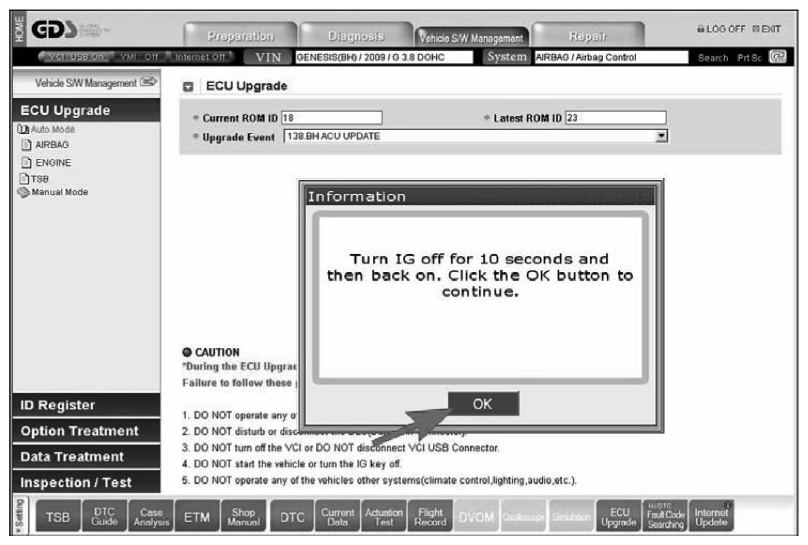

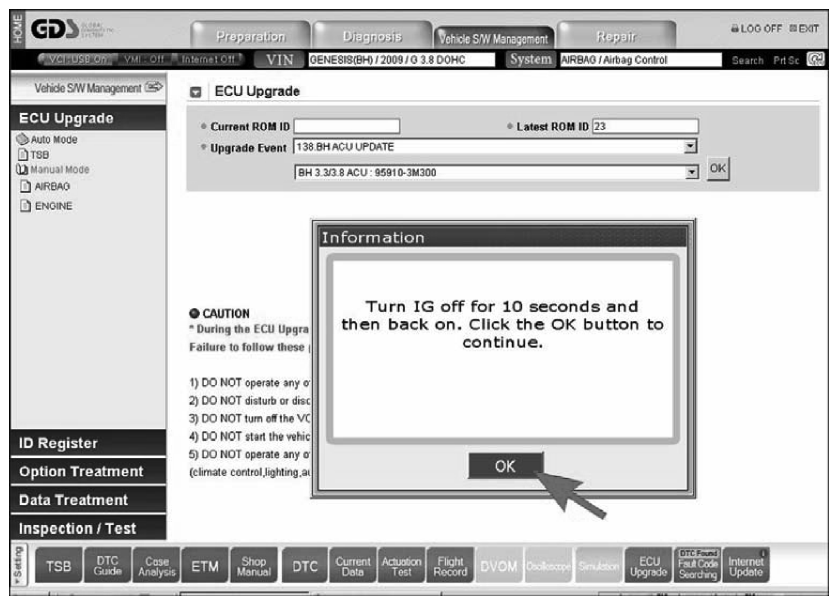

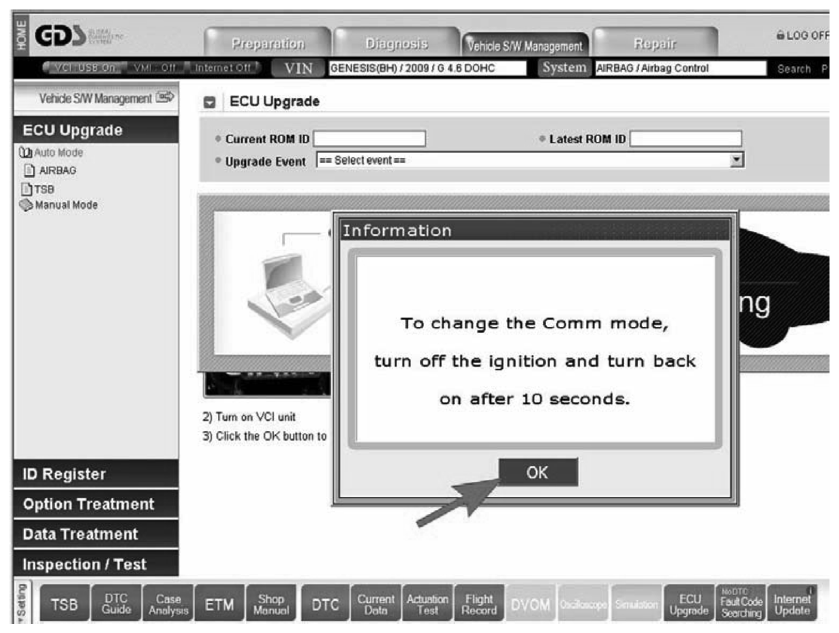

   Without depressing the brake pedal, push the Start/Stop button one time to turn off the ignition power for a minimum of 10 seconds. Push the Start/Stop button two times again to turn the ignition back on. Click OK  on the screen.

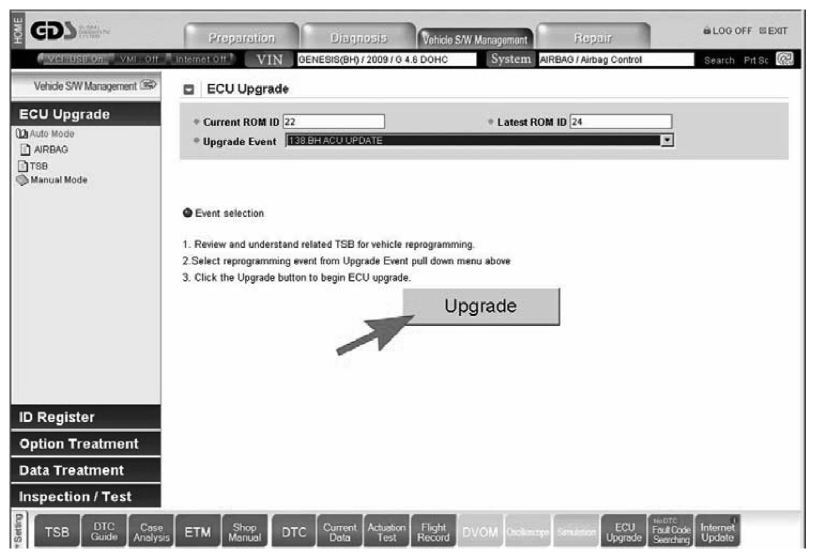

8. After the ACU CURRENT ROM ID is displayed, select the Upgrade Event 138.BH ACU UPDATE  and click Upgrade  .

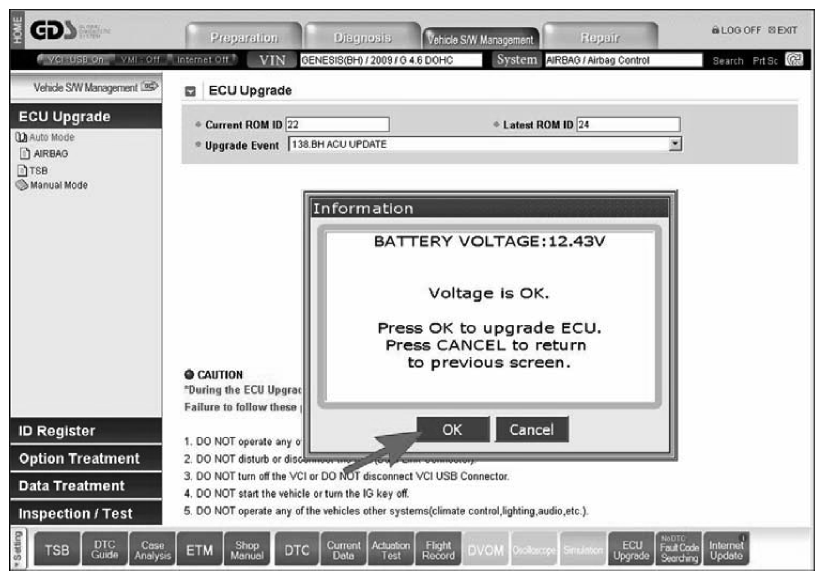

9. The battery voltage is verified to make sure it is at least 12 volts to ensure reliable update results. Click OK if the results indicate the voltage is OK.
   NOTE: If voltage is below 12 volts, click Cancel and then run the engine for several minutes to ensure an adequate battery charge state for reliable update results.

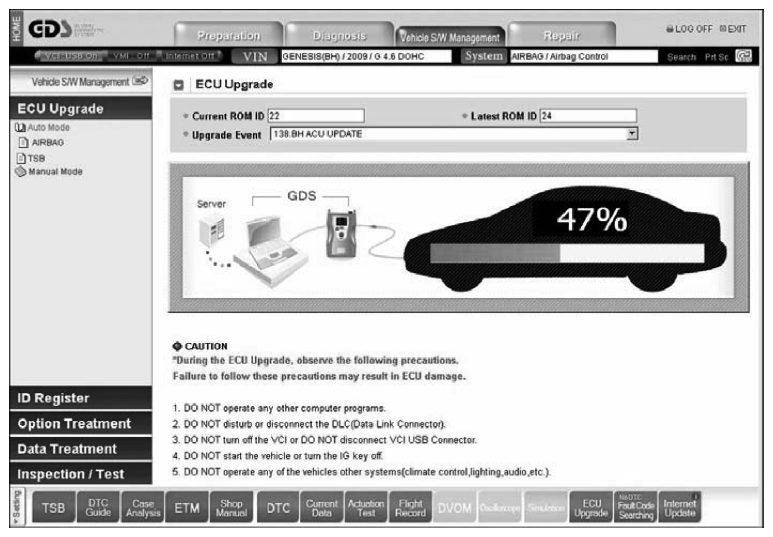

10. Reprogramming of the ACU will begin starting with the below screen and gradually show the progress on the bar.

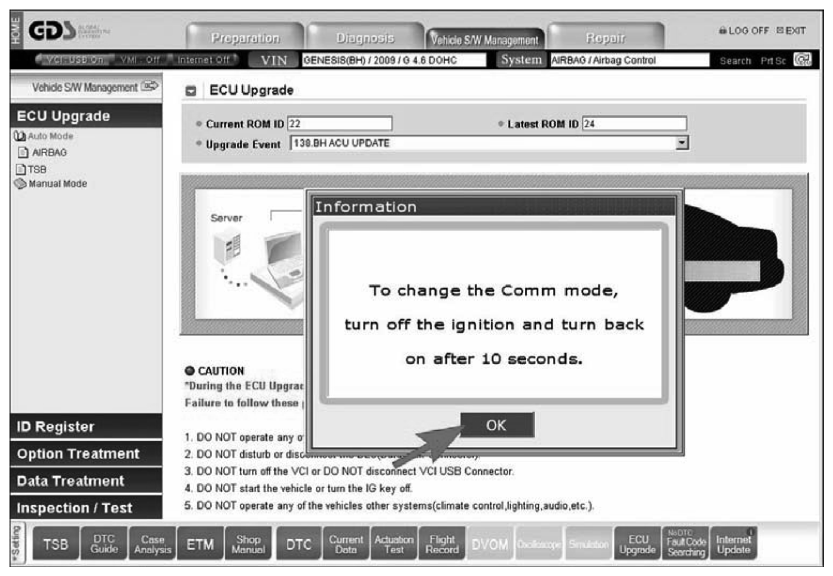

11. Update will occur until 100% is reached on the bar graph. Push the Start/Stop button one time to turn off the ignition power for a minimum of 10 seconds. Push the Start/Stop button two times again to turn the ignition back on. Click OK  on the screen.
12. Push the Start/Stop button one time to turn off the ignition power for a minimum of 10 seconds. Push the Start/Stop button two times again to turn the ignition back on. Click OK  on the screen.

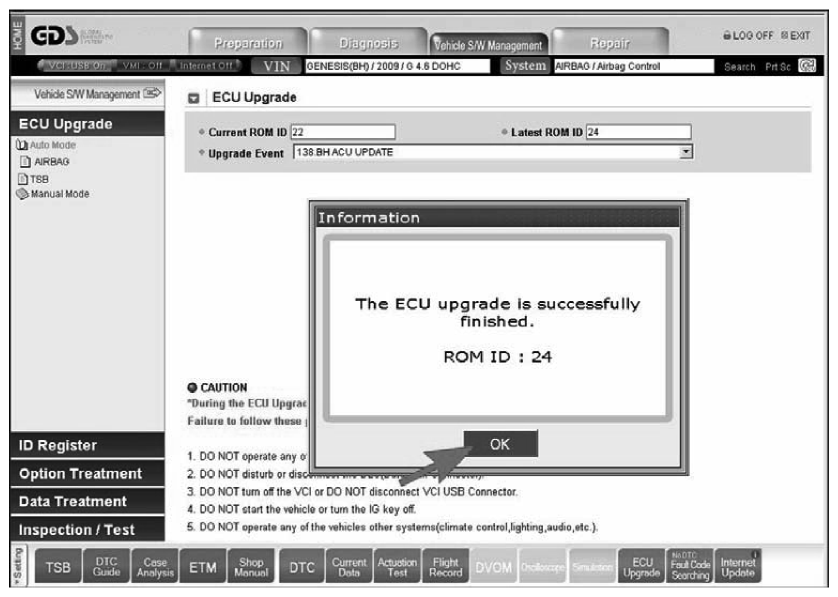

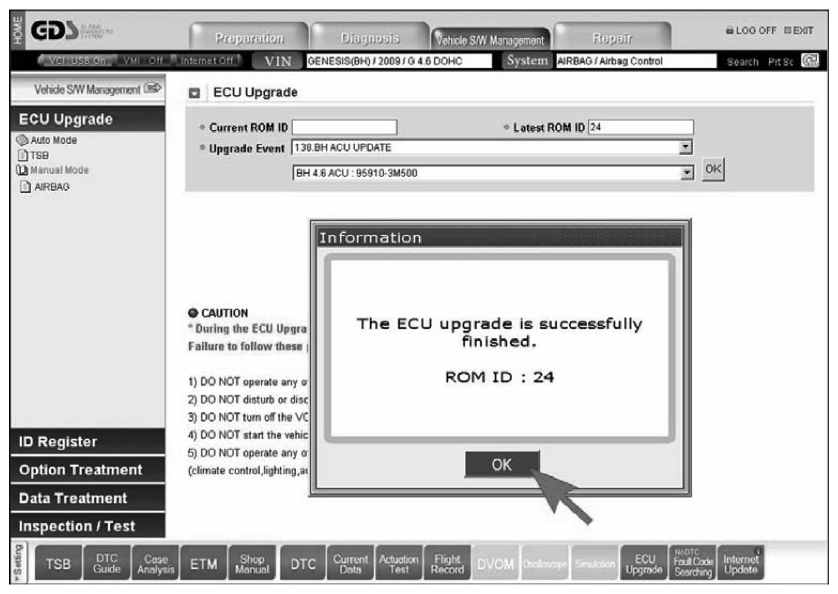

13. After the ACU Upgrade Successful  screen appears, click the OK  button.
14. Check that no incidental Diagnostic Trouble Codes (DTC) have been created by the reprogramming and, if there are, that they don't return after being cleared. If any codes return after being cleared, follow the diagnostic directions for that DTC.
15. Log GDS off and remove all GDS cables from vehicle and press the Start/Stop button two times to turn off the ignition for at least 10 seconds.
16. Depress the brake pedal and start the engine to confirm correct operation of the SRS system.

GDS MANUAL MODE (ERROR MODE) REPROGRAMMING PROCEDURE

Follow these steps in the event the ACU reprogramming was not successful or did not complete using the above GDS Auto Mode reprogramming instructions:

1. Turn off the ignition for 10 seconds and then turn it back on; this will ensure that the ACU is reset.

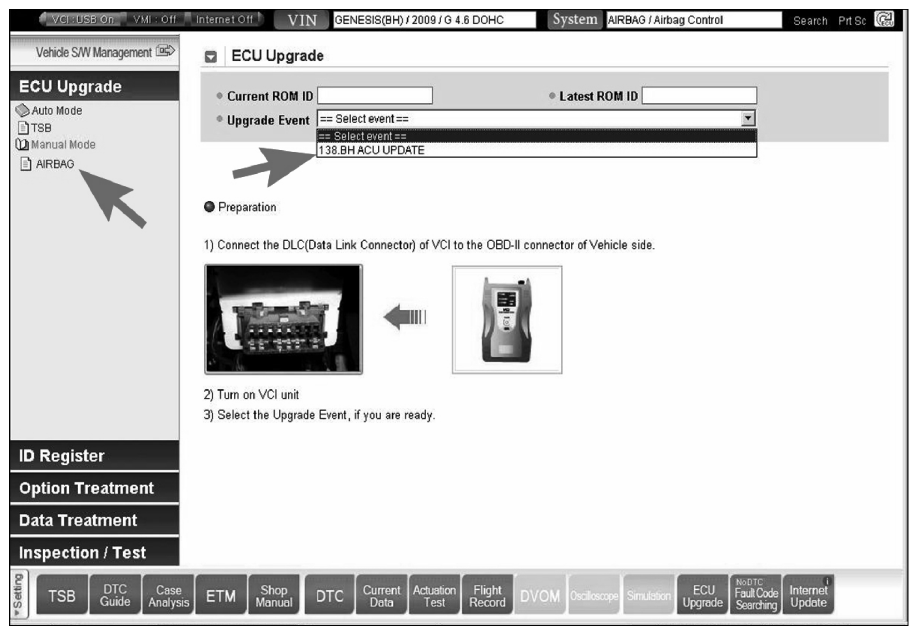

2. Within the ACU Upgrade screen in the left column select Manual Mode  followed by AIRBAG  . Then select Upgrade Event 138.BH ACU UPDATE  and click OK  .

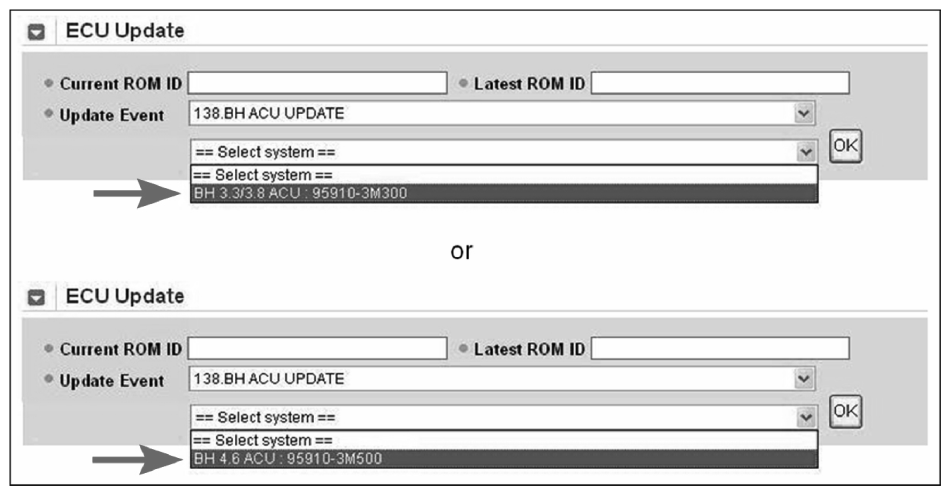

3. Select the appropriate control unit part number with reference to the ROM ID Information Table on page 2 of this TSB and click OK  .

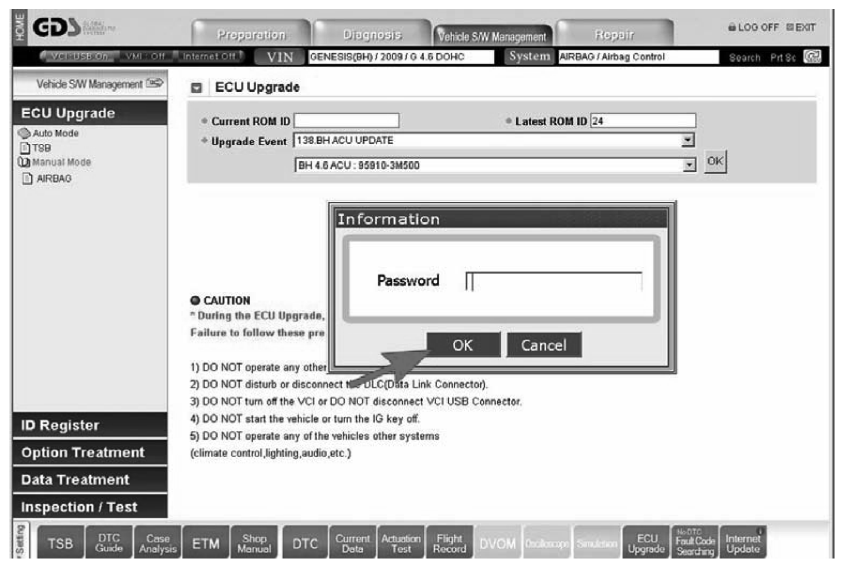

4. Enter the appropriate password from the below table and click OK
   PASSWORD DESCRIPTION



   MENU	PASSWORD
   BH 3.3/3.8 ACU: 95910-3M300	3300
   BH 4.6 ACU: 95910-3M500	3500

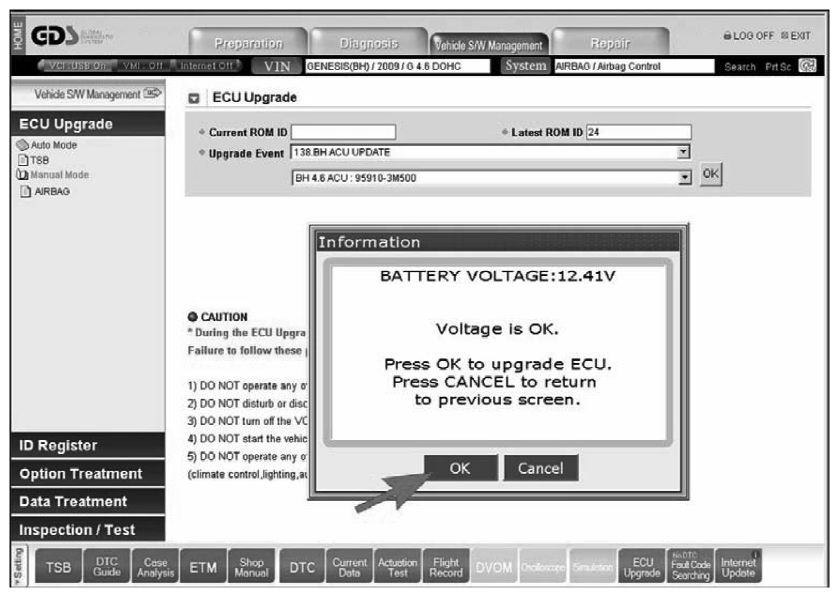

5. The vehicle battery voltage is checked to make sure it is at least 12 volts to ensure reliable update results. Click OK  if the results indicate voltage is OK.
   NOTE: If voltage is below 12 volts, click Cancel and then run the engine for several minutes to ensure an adequate battery charge state for reliable update results.

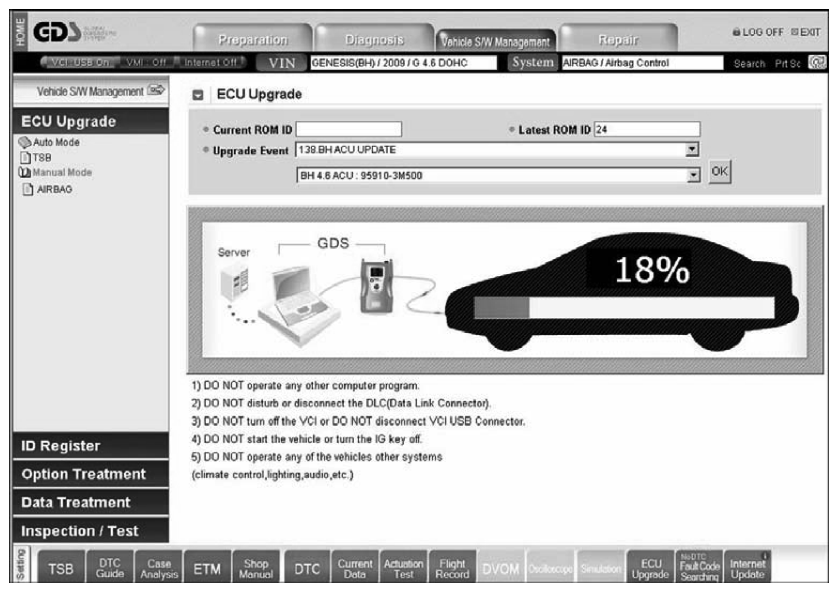

6. Update will begin and the progress of the update will appear on the bar graph.

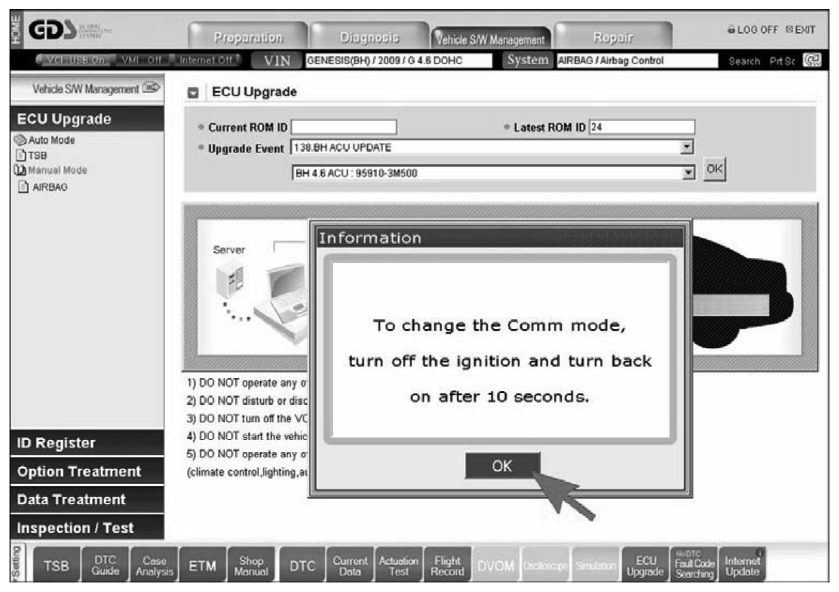

7. Update will occur until 100% is reached on the bar graph. Push the Start/Stop button one time to turn off the ignition power for a minimum of 10 seconds. Push the Start/Stop button two times again to turn the ignition back on. Click OK  on the screen.
8. Push the Start/Stop button one time to turn off the ignition power for a minimum of 10 seconds. Push the Start/Stop button two times again to turn the ignition back on Click OK  on the screen.
9. The manual reprogramming mode has been completed successfully when the following confirmation pop-up screen appears. Click the OK  button.
10. Check that no incidental Diagnostic Trouble Codes (DTC) have been created by the reprogramming and, if there are, that they don't return after being cleared. If any codes return after being cleared, follow the diagnostic directions for that DTC.
11. Log off from GDS and remove all GDS cables from vehicle and press the Start/Stop button two times to turn off the ignition for at least 10 seconds.
12. Depress the brake pedal and start the engine to confirm correct operation of the SRS system.

WARRANTY INFORMATION

OP CODE	OPERATION	OP TIME
90B010R0	ACU Update	0.2 M/H
