Schematic Diagram

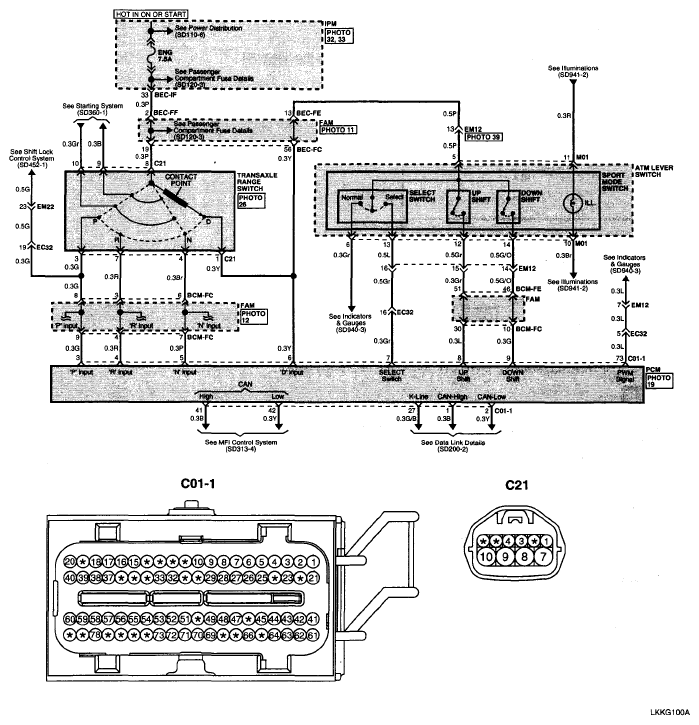

Fig 1: Transaxle Range Switch - Schematic Diagram

G05322281

Courtesy of HYUNDAI MOTOR CO.
