Automatic Transaxle Hydraulic Circuit

P/N

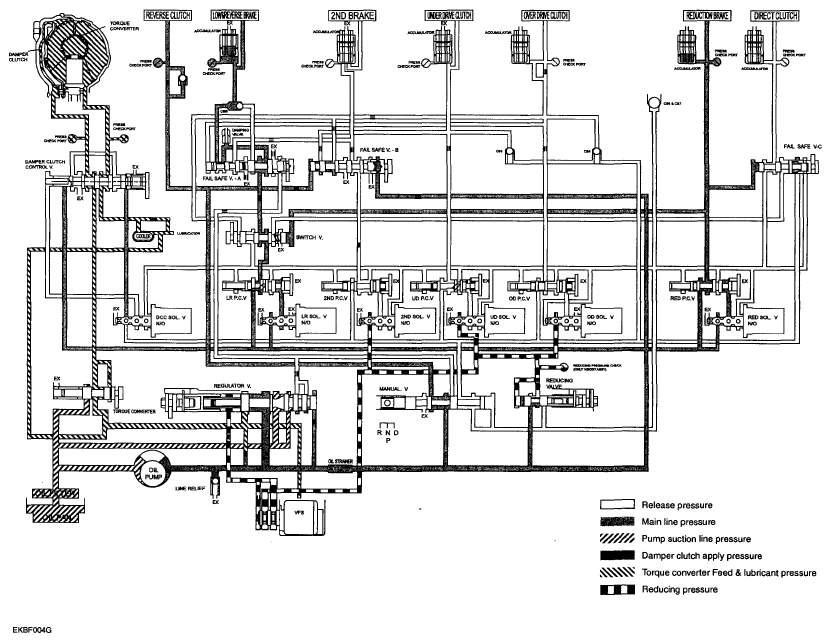

Fig 1: Automatic Transaxle Hydraulic Circuit Diagram (P/N)

Courtesy of HYUNDAI MOTOR CO.

D (1 RANGE)

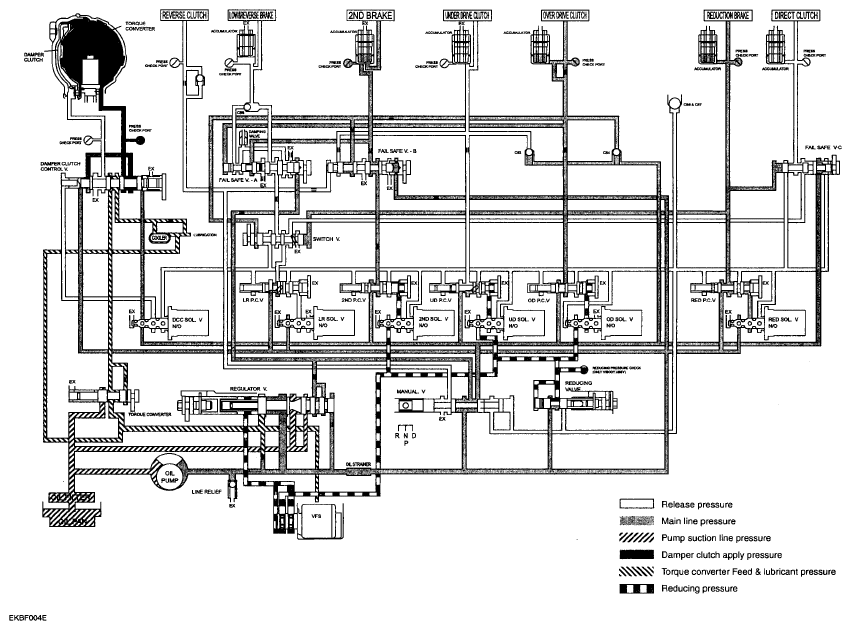

Fig 2: Automatic Transaxle Hydraulic Circuit Diagram D (1 Range)

Courtesy of HYUNDAI MOTOR CO.

D (2 RANGE)

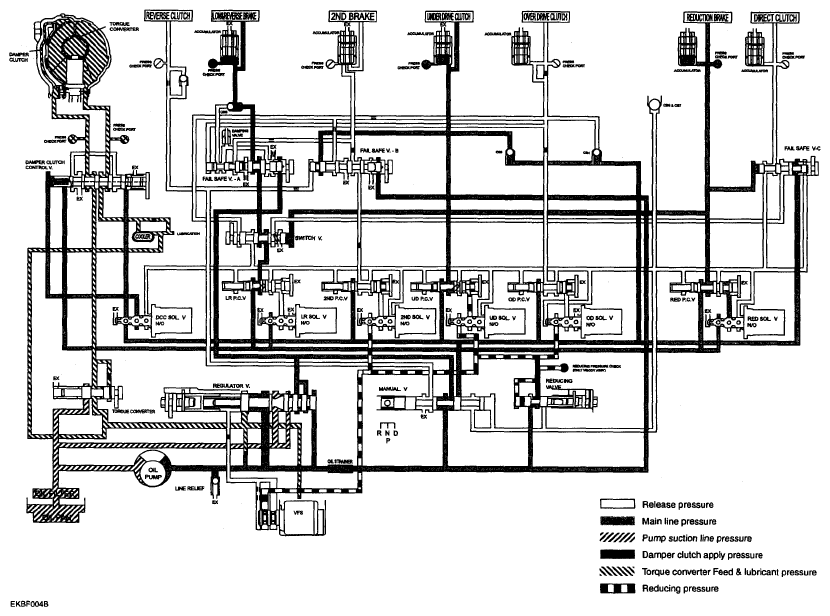

Fig 3: Automatic Transaxle Hydraulic Circuit Diagram D (2 Range)

Courtesy of HYUNDAI MOTOR CO.

D (3 RANGE)

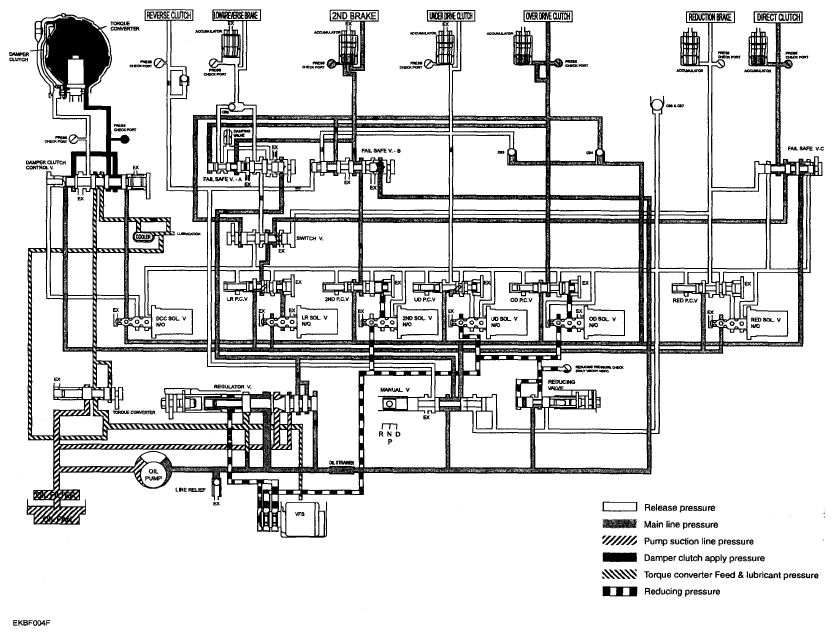

Fig 4: Automatic Transaxle Hydraulic Circuit Diagram D (3 Range)

Courtesy of HYUNDAI MOTOR CO.

D (4 RANGE)

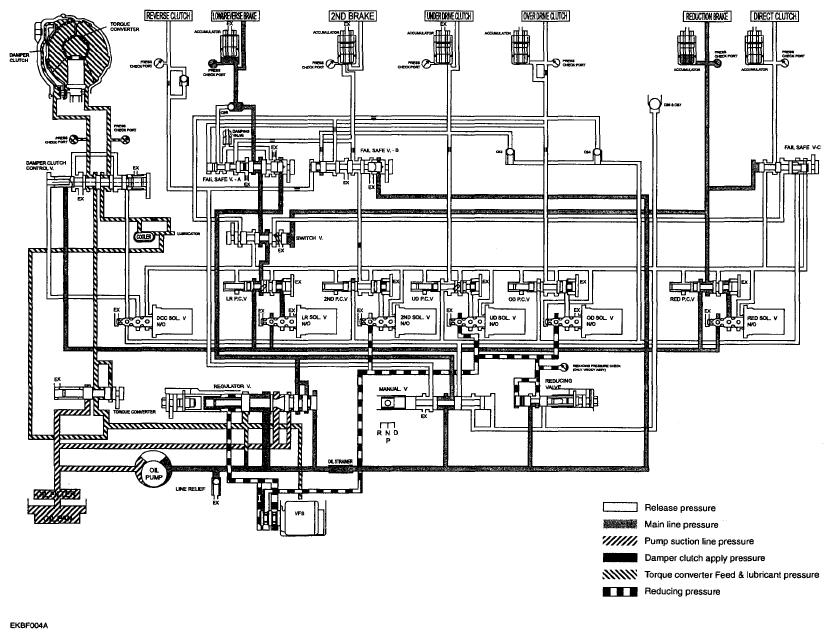

Fig 5: Automatic Transaxle Hydraulic Circuit Diagram D (4 Range)

Courtesy of HYUNDAI MOTOR CO.

D (5 RANGE)

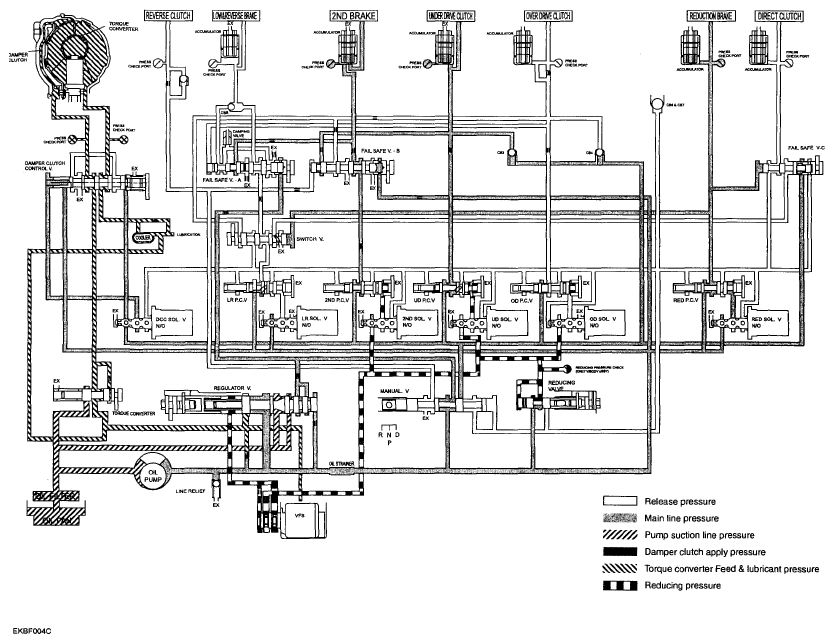

Fig 6: Automatic Transaxle Hydraulic Circuit Diagram D (5 Range)

Courtesy of HYUNDAI MOTOR CO.

R RANGE

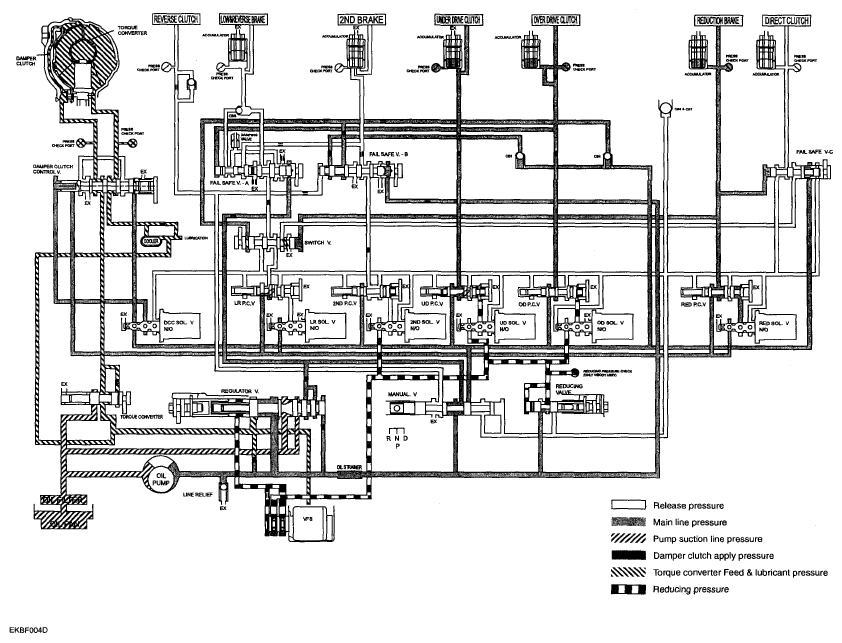

Fig 7: Automatic Transaxle Hydraulic Circuit Diagram (R Range)

Courtesy of HYUNDAI MOTOR CO.
