Home >> Hyundai >> 2009 >> Entourage GLS >> Repair and Diagnosis >> Accessories & Equipment >> Cruise Control Systems >> Cruise Control Main Switch >> Circuit Diagram

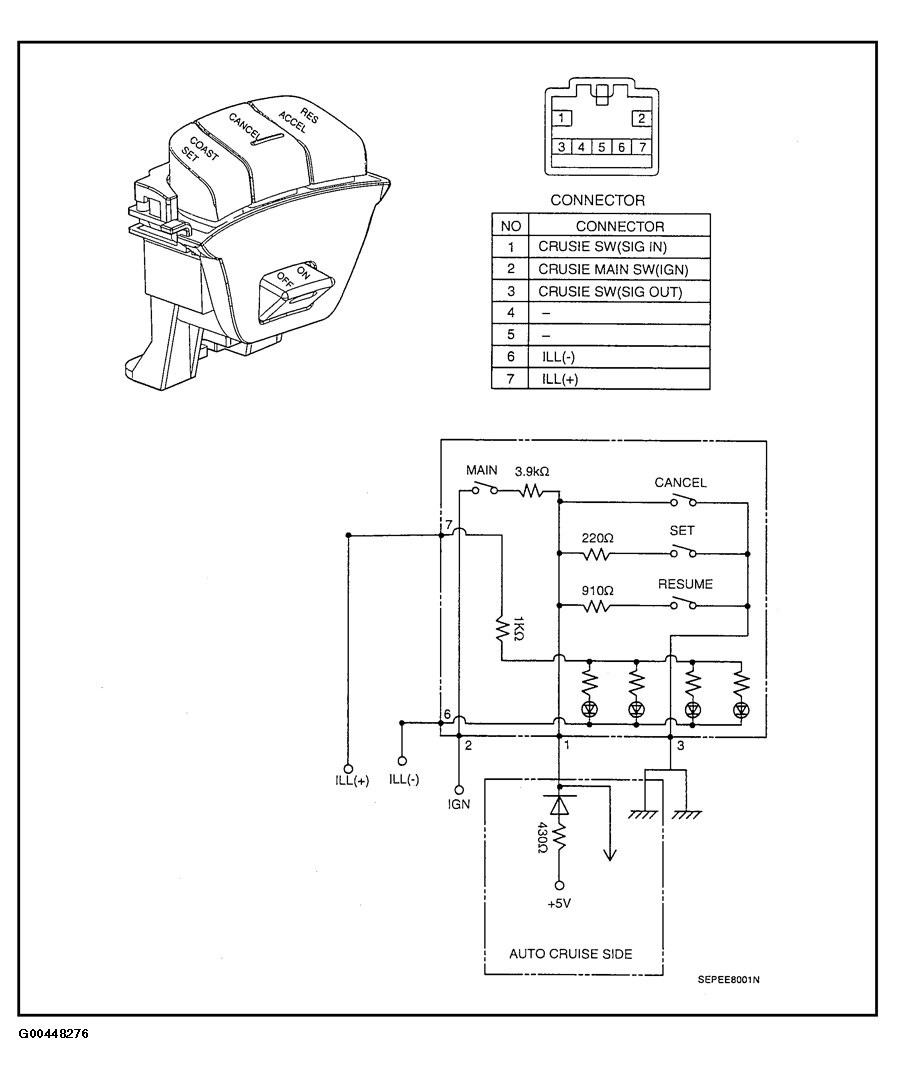

Circuit Diagram

G00448276

Courtesy of HYUNDAI MOTOR CO.
