Elantra Touring Standard
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
DTC Troubleshooting Procedures
>>
Inspection Chart For Diagnostic Trouble Codes (DTC)
>>
P0136 O2 Sensor Circuit (Bank 1/Sensor 2)
>>
Diagnostic Circuit Diagram
Diagnostic Circuit Diagram

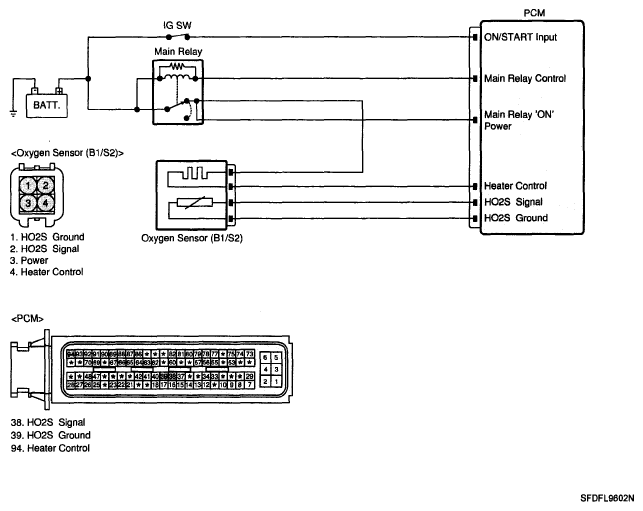

Fig 1: Oxygen Sensor And PCM - Circuit Diagram
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
