Seat Back Frame Replacement

WARNING: This page is about a different car, the 2008 Hyundai Azera. However, it is still accessible from the selected car via links, so may be relevant.

Remove the following items.
- Recliner cover (See RECLINER COVER REPLACEMENT ).
- Seat back panel (See SEAT BACK COVER REPLACEMENT ).
- Headrest guide (See SEAT BACK COVER REPLACEMENT ).
- Seat back cover (See SEAT BACK COVER REPLACEMENT ).
Remove the pad (A) from frame (B).
NOTE:
- Remove the side air bag for replacing side air bag installation seat.
- Be fore service, be fully aware of precautions and service procedure relevant to air bag

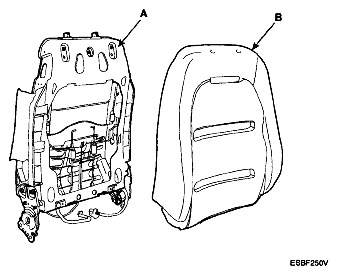

Fig 1: Identifying Pad And Frame
Courtesy of HYUNDAI MOTOR CO.
Installation is the reverse of removal.
