Monitor SCANTOOL Data

  1. Connect scantool to data link connector (DLC).
  2. Engine "ON".
  3. Monitor the "2nd SOL. VALVE" parameter on the scantool.
  4. Shift gear at each position.

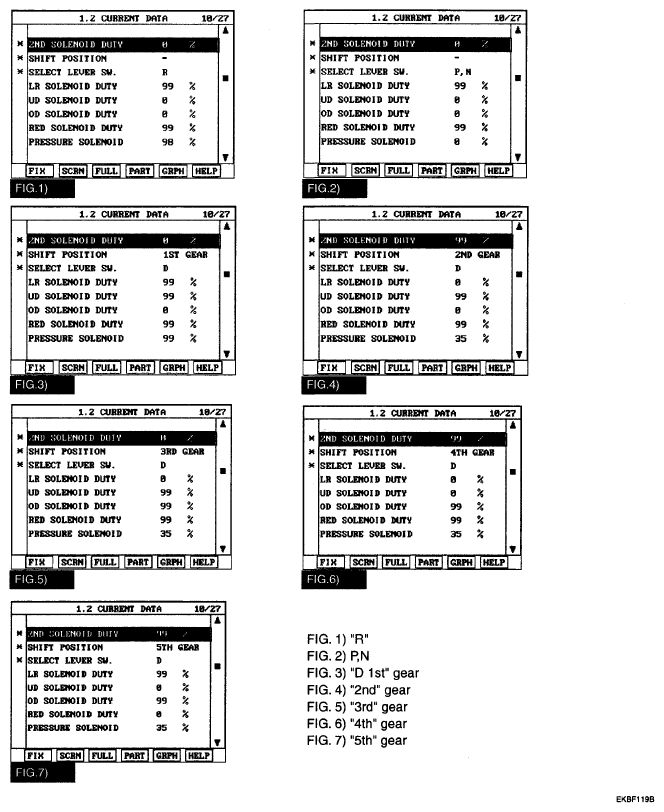

    Fig 1: Scan Tool Display - 2nd SOL. Valve Parameter
    G04880169Courtesy of HYUNDAI MOTOR CO.
  5. Does "2nd SOLENOID DUTY" follow the reference data?

    YES

    • Fault is intermittent caused by poor contact in the sensor's and/or TCM (PCM)'s connector or was repaired and TCM (PCM) memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
