Schematic Diagram

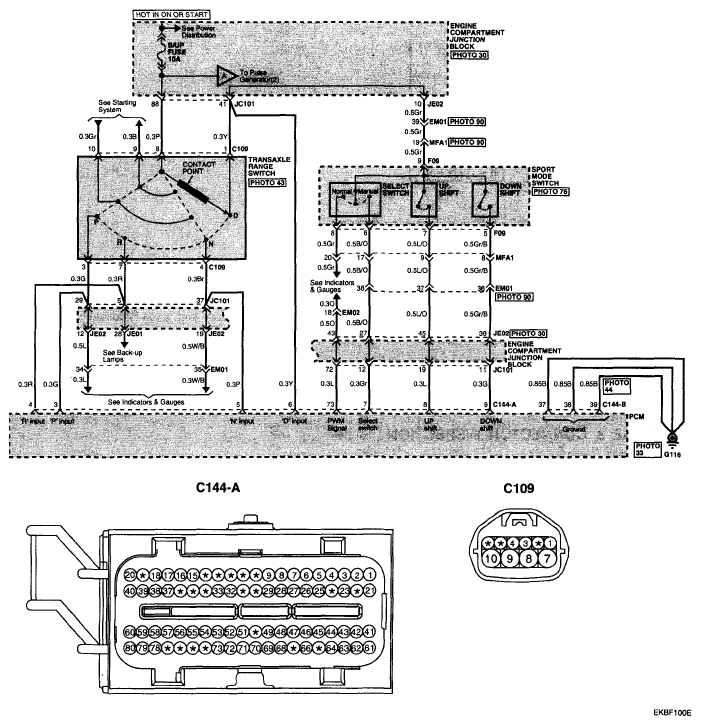

Fig 1: Schematic Diagram - Transaxle Range Switch

G04880078

Courtesy of HYUNDAI MOTOR CO.
