IMS Power Seat Control: Inspection

  1. Remove the seat control switch.

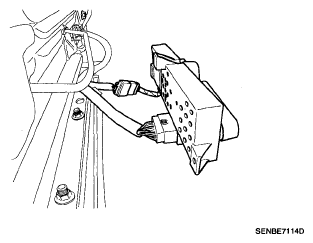

    Fig 1: Removing Seat Control Switch
    G05331893Courtesy of HYUNDAI MOTOR CO.
  2. With the power seat control switch in each position, make sure that continuity exists between the terminals below. If continuity is not as specified, replace the power seat control switch.

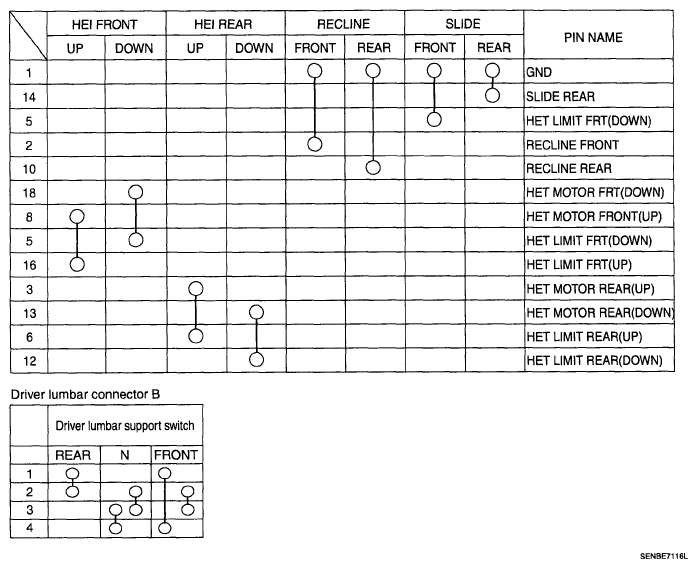

    Fig 2: Power Seat Connector Switch Continuity Reference Table
    G05331895Courtesy of HYUNDAI MOTOR CO.
