Schematic Diagram

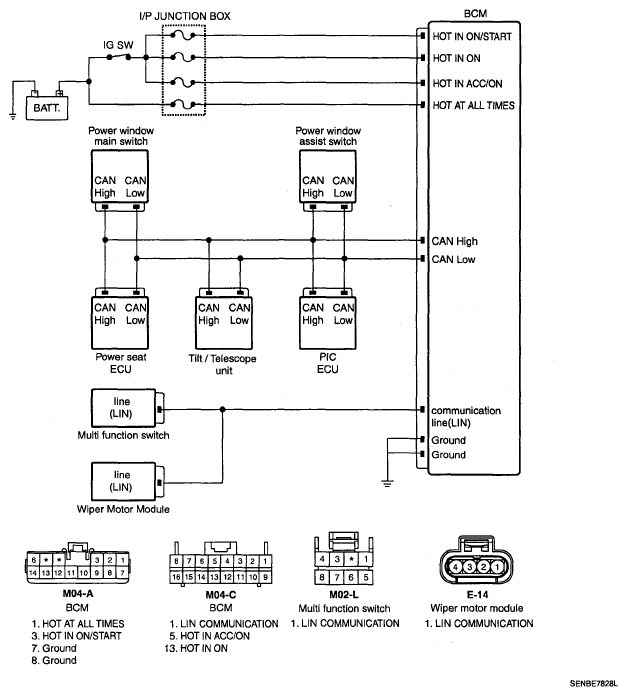

Fig 1: LIN Transmission ERROR For WMM And M/F SW - Schematic Diagram

G05331855

Courtesy of HYUNDAI MOTOR CO.
