Schematic Diagram

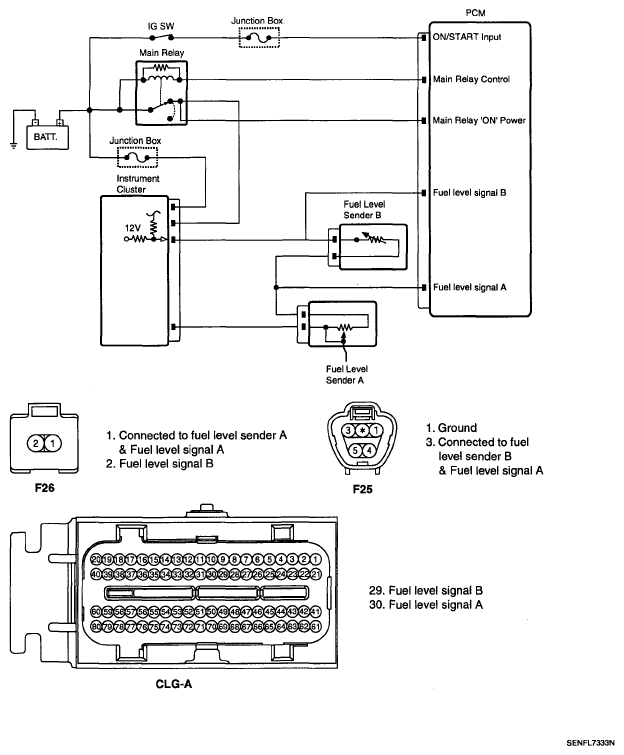

Fig 1: Fuel Level Sensor B Circuit Shorted - Schematic Diagram

G05330063

Courtesy of HYUNDAI MOTOR CO.
