Schematic Diagram

Refer to DTC P0111 .

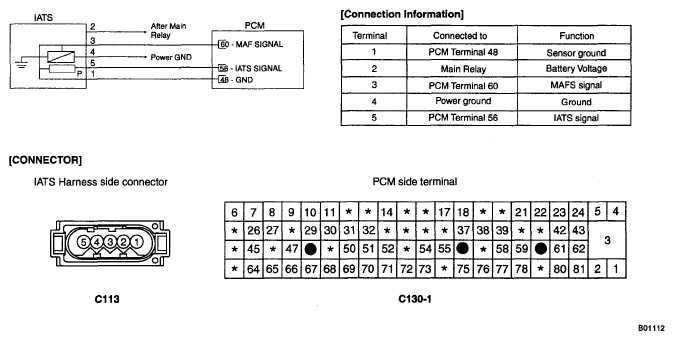

Fig 1: Intake Air Temperature Sensor Circuit Schematic Diagram

G04810685

Courtesy of HYUNDAI MOTOR CO.
