Input And Output Diagram

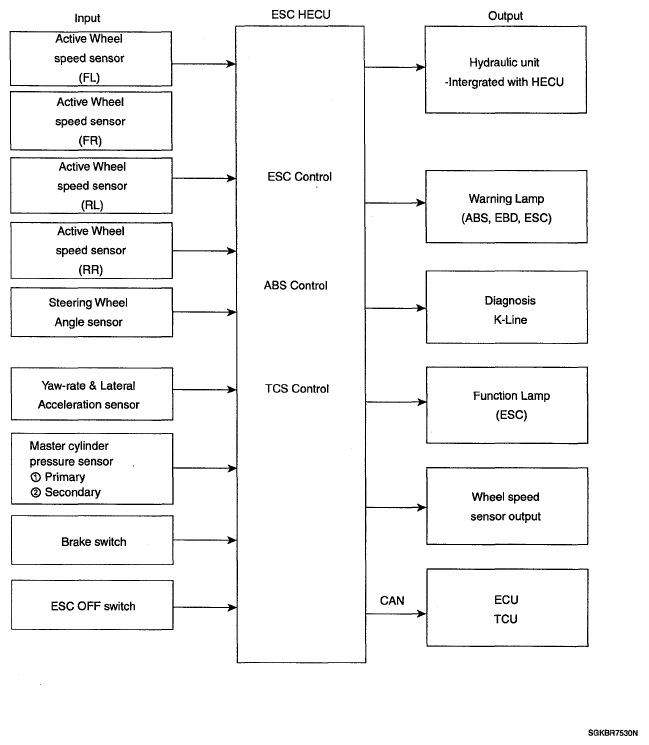

Fig 1: ECS HECU Input And Output Diagram

G05344520

Courtesy of HYUNDAI MOTOR CO.
